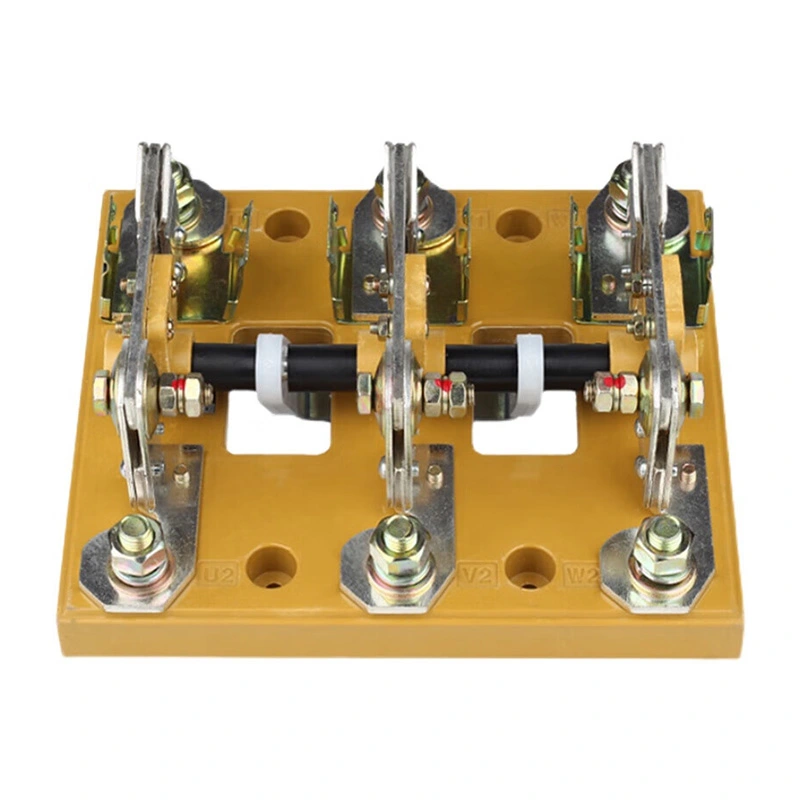

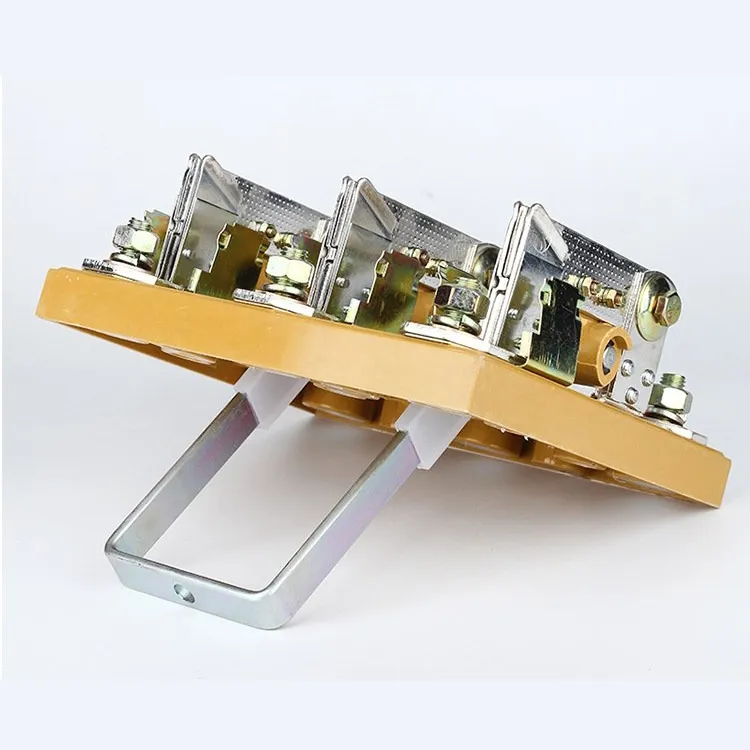

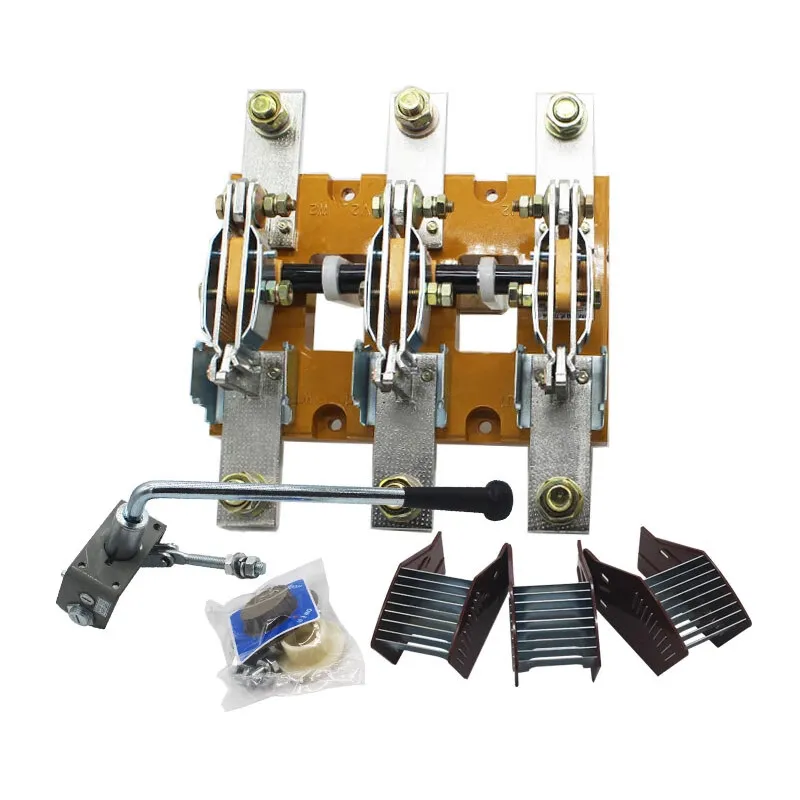

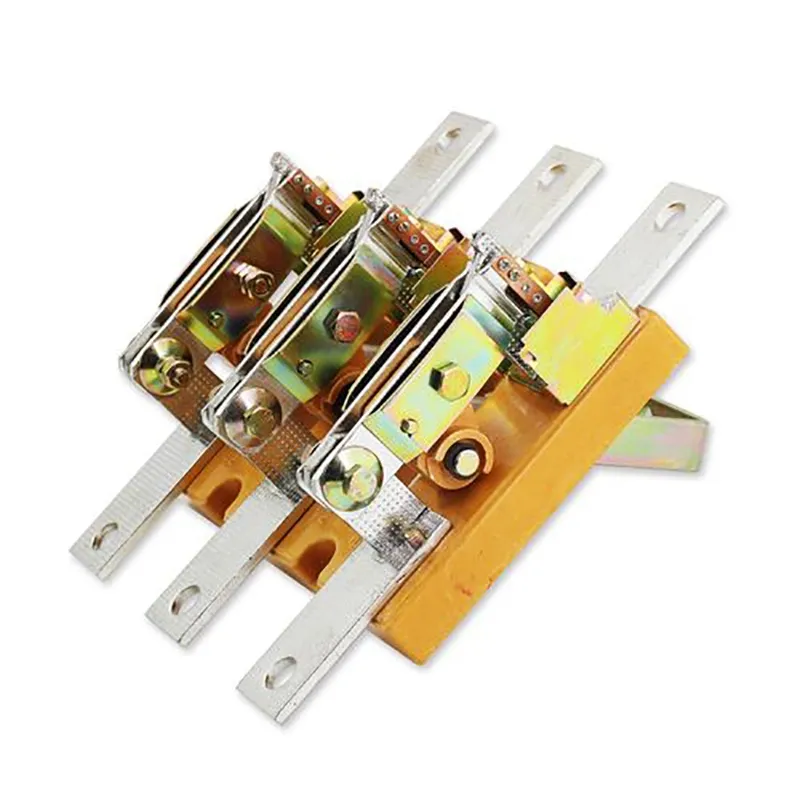

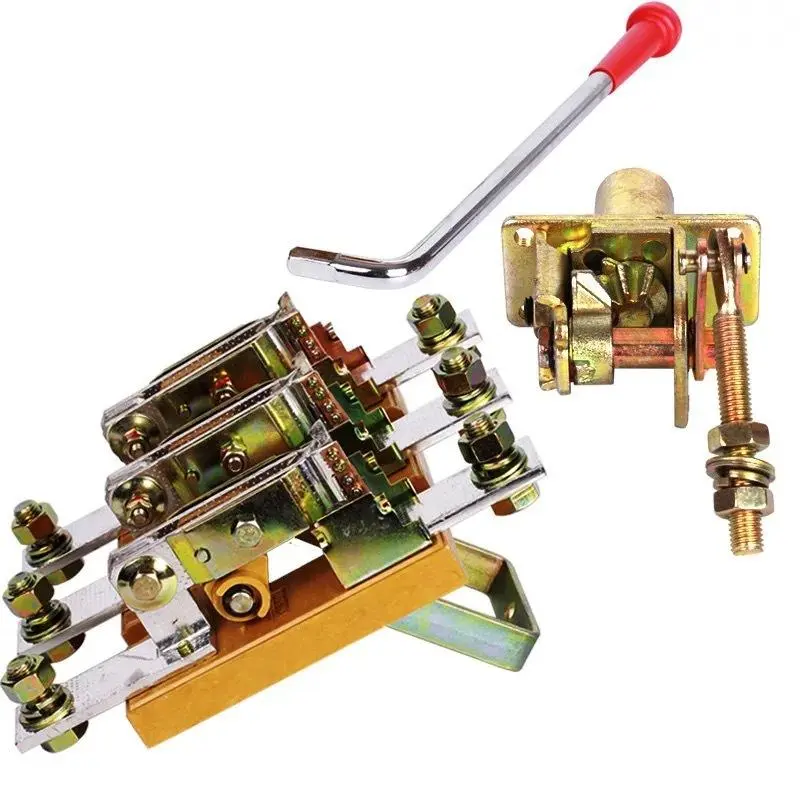

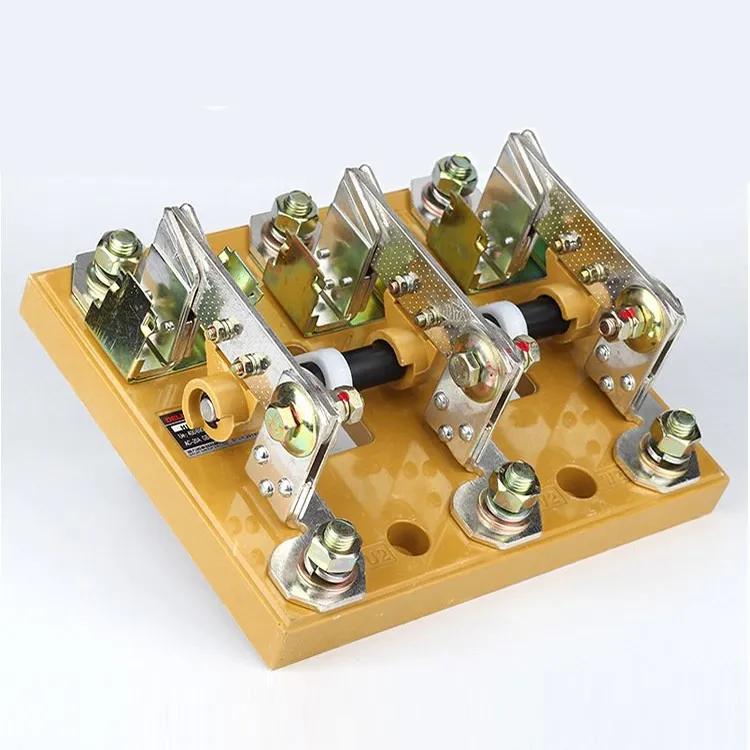

Electrical Cabinet 800 Amp 3 Phase Disconnect Switch

Ad producendum certae electrica arcae DCCC amp III tempus disconnect switch, Wenzhou XiFa Electric Power Equipment Co, Ltd adoptat qualitatem aeris contactus et habitationem robustam ut diuturnam vitam serviat. Interim singulae armaturae electricae 800 amp 3 Phase disconnect switch habet pactionem et simplicem consilium non solum ad rem apertam disiunctio in visuali, sed etiam ad tabulam vel ad murum ascendendum aptam. Interim necessarium est unicuique arcae electricae 800 amp 3 amp phase disconnect switch officinas subire ante naviculas velocissimas.

Mitte Inquisitionem

depictio producti

A 800 amp 3 phase disconnect switch machinatio praesertim adhibita ad fontes potentiae solitariae, operationes mutandi faciendos et circa circulos venas currentes connectens vel disiungens. Arcus exstinguendi facultatem non habet. Cum in aperto posito, contactus distantiam certae insulationis cum luce clare visibili defendunt; cum in loco clauso, transitum capax est ad currentem normalem operantem et obstantibus condicionibus abnormalibus, ut breves currentis circuii, ad definitum tempus.

Pleraque in casibus, 800 amp 3 phase disconnect switch applicatae sunt ut humilis voltages isolatoribus, significationes pro voltages infra 1 kV aestimantur. Quamvis principium operativum et constructio eorum simplicia relative sint, in magna quantitate producuntur, eorumque fides critica est. Quam ob rem, magnas partes agunt in consilio, constructione, et operatione tuta substations et plantarum potentiarum.

Definiens indoles 800 amp 3 temporis disiunctio switch est ut onus currenti interrumpere non possit; solum aperiri vel claudi potest, cum liber currentis in circuitu est. Typical references to 800 amp 3 phase disconnect switch operire functiones, lineamenta, classificationes, applicationes, anti- misoperationem emendationum, praxium sustentationem et quaestiones communes.

Electrical Cabinet 800 Amp 3 Phase Disconnect Switch

Parameter productio:

lth (A)	125A	160A	200A	250A	315A	400A	500A	630A	1000A	1250A	1600A	2000A	2500A	3150A	4000A
Ui(V)	750	750	750	750	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
Dielectrica robur (V)	5000	5000	5000	5000	8000	8000	8000	8000	10000	10000	10000	10000	10000	10000	10000
Uimp (KV)	8	8	8	8	12	12	12	12	12	12	12	12	12	12	12
Current le opus (A)
400V AC21B	125	160	200	250	315	400	500	630	1000	1250	1600	2000	2500	3150	4000
400V AC22B	125	160	200	250	315	400	500	630	1000	1250	1600	2000	2500	2500	2500
400V AC23B	125	160	200	250	315	340	425	500	800	1000	1250	1250	1250	1250	1250
750V AC21B	125	160	160	200	315	400	400	500	1000	1000	1600	2000	2500	3150	4000
750V AC22B	125	160	160	160	315	315	315	315	800	800	800	2000	2000	2000	2000
750V AC23B	80	80	100	125	125	125	125	125	400	400	500	1000	1000	1000	1000
220V DC21	125	160	200	250	315	400	500	630
220V DC22	125	160	200	250	315	400	400	500
220V DC23	125	125	160	200
440V DC21	100	125	160	200	315	400	400	500
440V DC22	100	125	160	200	315	400	400	500
440V DC23	100	125	160	200
Motor Power(KW)
400V	63	80	100	132	160	220	280	315	560	560	560	710	710	710	710
750V	75	75	90	110	185	185	185	185	475	475	475	750	750	750	750
lcw (KA Rms,0.1S/1.0S)	20/10	20/10	30/12	30/12	45/20	45/20	50/25	50/25	90/50	90/50	90/50	90/50	90/50	90/50	90/50
Facere et frangere Capacity
lcn(A Rms) AC23B 400V	1250	1250	2000	2000	3150	4000	4000	4000	10000	10000	10000	10000	10000	10000	10000
lcm(A Rms) AC23B 400V	1000	1000	1600	1600	2500	3200	3200	3200	8000	8000	8000	8000	8000	8000	8000
lcm (KA Pecco Value)	12	12	17	17	30	30	40	40	70	70	70	70	70	70	70
Mechanica Vita (tempora)	10000	10000	10000	10000	5500	5500	5500	5500	4000	4000	3000	2500	2500	2500	2500
Electrical Vita (tempora)
Ue=660V Rated Current le
COS∮＝0.95 AC21B	1500	1500	1500	1500	750	750	750	750	600	600	450	400	400	350	350
COS∮＝0.65 AC22B	1000	1000	1000	1000	500	500	500	500	400	400	300	200	200	200	200
COS∮＝0.35 AC23B	500	500	500	500	250	250	250	250	200	200	150	100	100	100	100
Pondus (kg)
3 polos	1	1	2	2	3.5	3.5	4	4	10.5	10.5	16	31	31	42	90
4 polos	1.5	1.5	2.5	2.5	4	4	4.5	4.5	13	13	20	40	40	49	102
Torque operating (Nm)	6.5	6.5	10	10	14.5	14.5	14.5	14.5	27	27	27	60	60	60	110

Electrical Cabinet 800 Amp 3 Phase Disconnect Switch

Type		Artus Location (mm)						installation Location (mm)
Type		A	B	C	C1	D	G	a	b	Φc	H	K	M
HD13-100	3P	210	190	80	160	80	250	80	160	Φ7	90	82	M8
HD13-100	4P	290	190	80	160	80	250	160	160	Φ7	90	82	M8
HD13-200	3P	210	190	80	160	80	250	80	160	Φ7	90	82	M8
HD13-200	4P	290	190	80	160	80	250	160	160	Φ7	90	82	M8
HD13-400	3P	240	205	92	180	90	250	90	160	Φ7	88	82	M12
HD13-400	4P	330	205	92	180	90	250	180	160	Φ7	88	82	M12
HD13-600	3P	270	300	100	188	100	250	100	160	Φ9	88	82	M16
HD13-600	4P	370	300	100	188	100	250	200	160	Φ9	88	82	M16
HD13-1000	3P	325	315	116	226	120	250	120	160	Φ9	85	78	2-M12
HD13-1000	4P	450	315	116	226	120	250	240	160	Φ9	85	78	2-M12
HD13-1500	3P	360	355	125	238	130	250	130	160	Φ11	85	78	4-M12
HD13-1500	4P	490	355	125	238	130	250	260	160	Φ11	85	78	4-M12
HD13-2000	3P	360	355	125	238	130	250	130	160	Φ11	85	78	4-M12
HD13-2000	4P	490	355	125	238	130	250	260	160	Φ11	85	78	4-M12

Type	A	B	C	D	E	F	H	Φa	Φb	G
HD13-2000	520	350	170	180	48	36	277.5	12	9	250
HD13-3000	600	390	200	180	60	40	233	16	11	250

Productio FAQ:

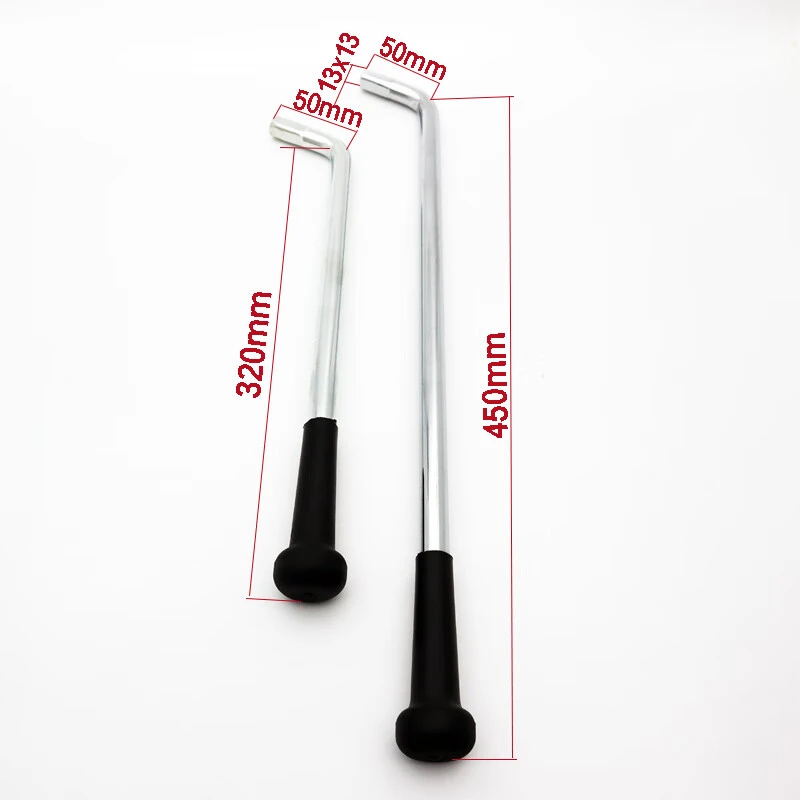

Q: Quomodo eligo inter varias manubrii species (vs. vectis in gyro)?

A: Ansam gyratorii: Foedus, saepe in centris motoriis vel in spatiis strictis adhibitis.

Vectis tractat: Maior et magis visibilis praefertur cum manifesta significatio DE/ON necessaria est.

Electio ex spatio, visibilitate salus, et praelatio operantis pendet.

Q: Num 800 amp 3 phase disconnect switch iungi in aliqua orientatione?

A: Fere, 800 amp 3 phase disconnect switch ascendere debet verticaliter ad salutem et codicem requisita. Quaedam consilia flexibilitatem permittunt, sed semper instructiones fabricarum et normas electricas locales sequuntur.

Q: Num 800 amp 3 tempus disconnect switch subsidium lockout/tagout (LOTO) procedendi?

A: Ita, includit 800 amp 3 phase disconnect switch, pleraque exemplaria instructa sunt cum manubriis padlockable ut obsequium cum OSHA lockout/tagout salutem requirantur. Hoc permittit technici ut tuto serviant instrumenta sine periculo reenergizationis fortuitae.
