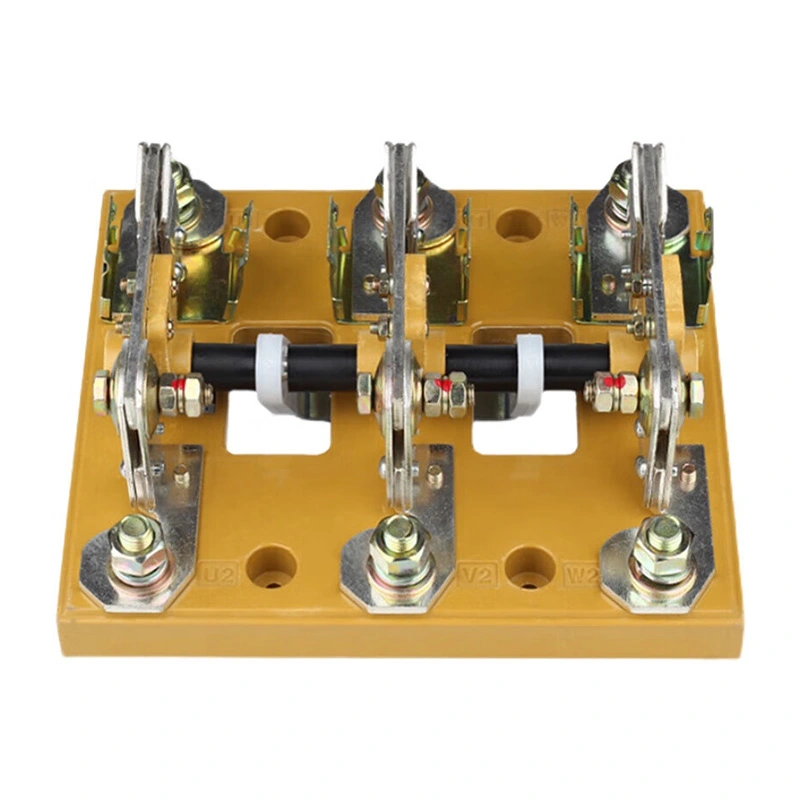

C Amp 4 Pole Isolator Switch

Wenzhou XiFa Electric Power Equipment Co., Ltd est certa officina ad solida 100 amp 4 polus isolator virgas producere. Societas epoxy resinam vel thermoset materias plasticas quasi insulationes adhibet ut efficax insulationem inter partes conductivas praebeat et ne tempus ad breves circuitus instituatur. Contactus et conductivity princeps aeris vel argenti admixtio aeris inaurata ad certas nexus et disiunctio circuitus praestat, cum lamina argenti reducendi resistentia, calefactio, et oxidatio. Additional pro quolibet vendito 100 amp 4 polus isolator permutat, turma technica interrogatio de clientibus intra 24 horas respondebit.

Mitte Inquisitionem

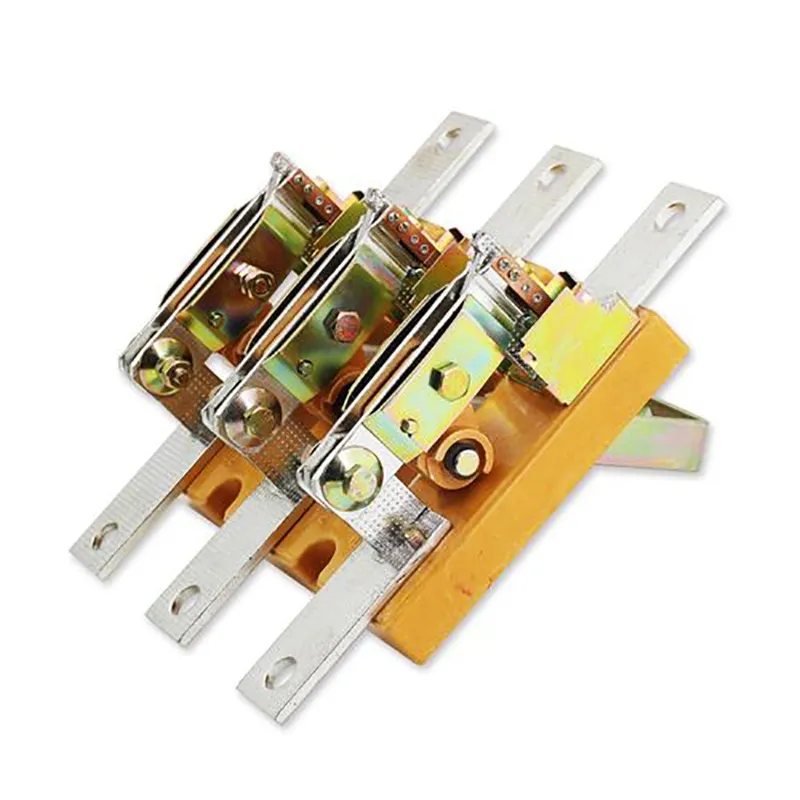

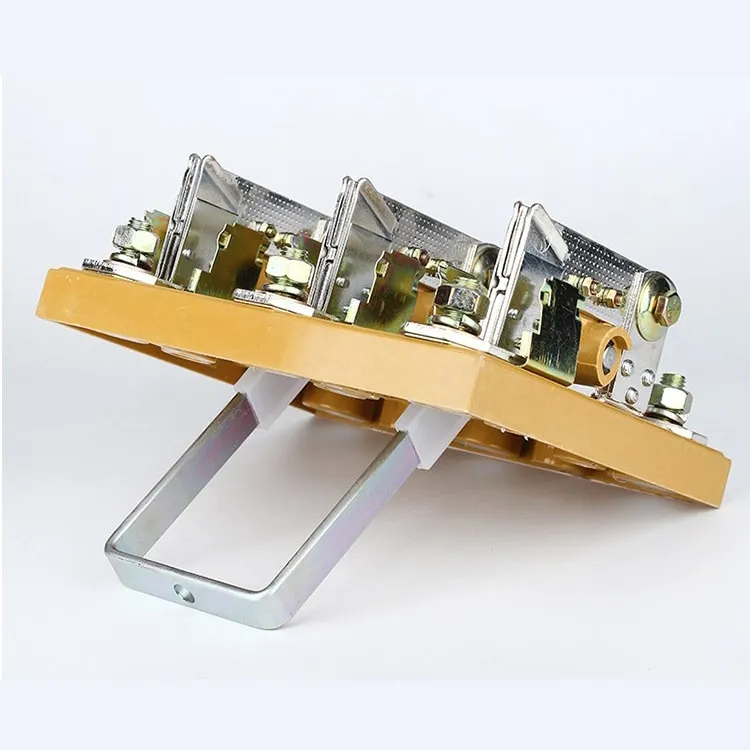

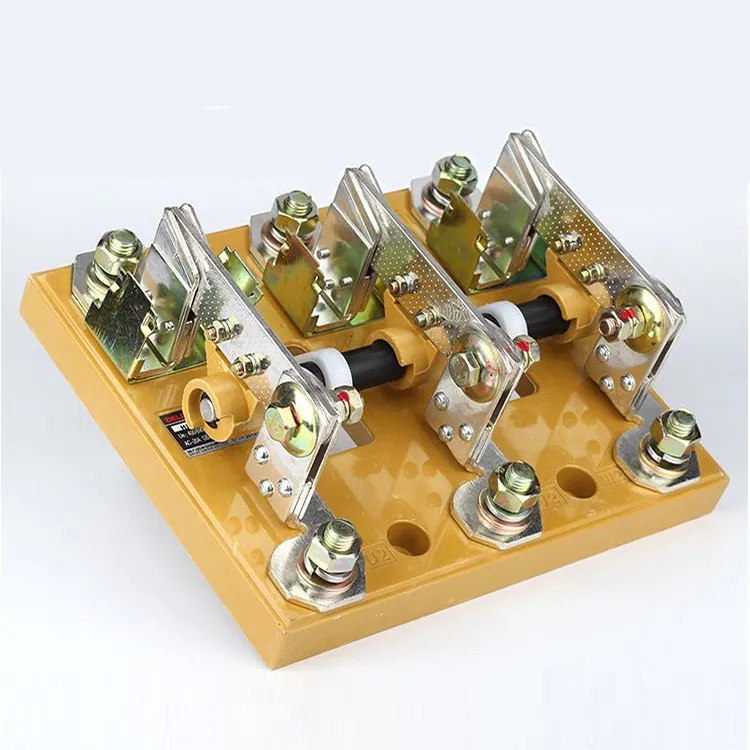

depictio producti

A 100 amp 4 polus isolator transiens est machinae mutandi electricae dispositae ad circulos disiungendi et copiam potentiae abscindendi. Constat quattuor polis separatis, inter duos input terminales et duos output terminales. Providens certam disiunctio, in 100 amp 4 polus isolator transiens utrumque curatores et apparatum salutis efficit.

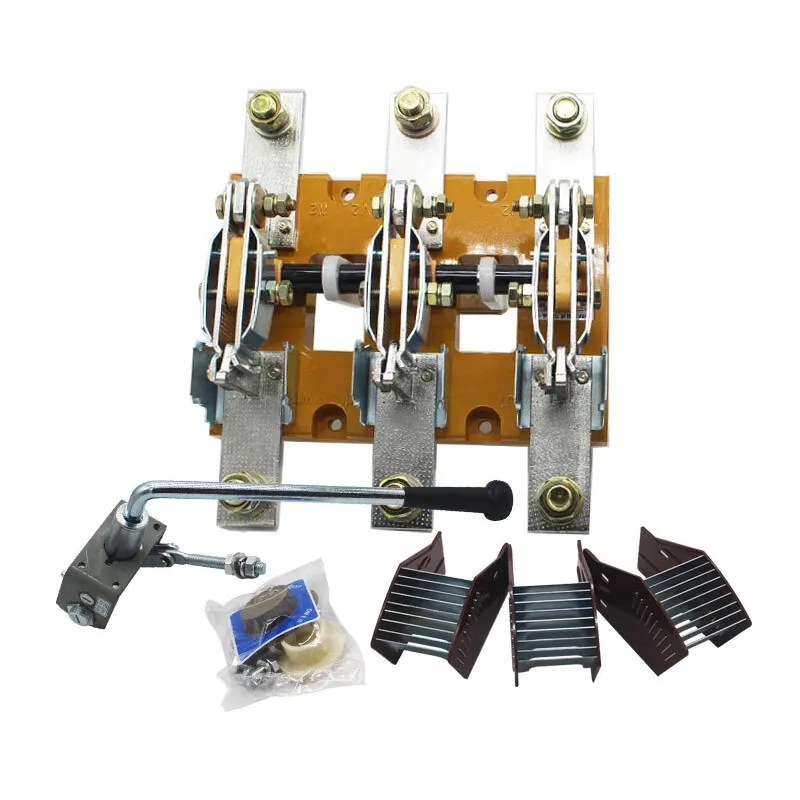

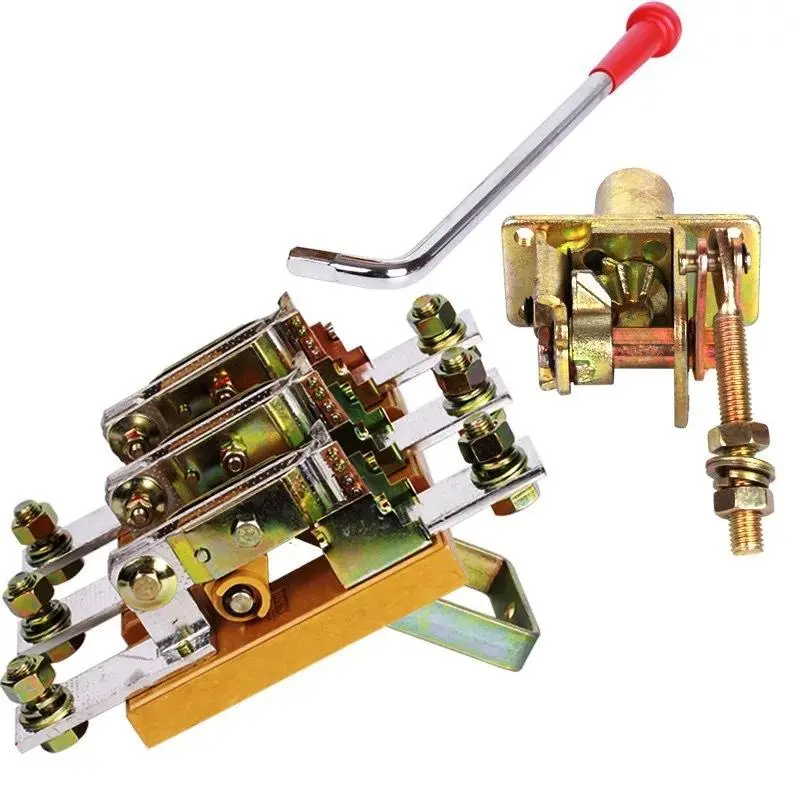

The 100 amp 4 polus isolator transiens typice constituitur ex tribus partibus principalibus: clausura, mechanismus operans et electricae partes. Clausura ex materia insulating fabricata est, ne lacus current et electricus incursus. Mechanismus operans permittit switch ut manually aperiatur vel claudatur, dum elementa electrica polos, connexionem terminales et alia elementa conductiva includunt.

Communia Applications de 100 amp 4 polo switch isolatoris:

1.Power Systems: Late in retiaculis substationibus et distributionibus, in 100 amp 4 polus isolator transiens disiungit vel redirectores potentiae fluxus, adiuvans tutam ac stabilem operationem craticulam conservandam.

2.Industriales institutiones: Applicatae in machinatione dicione et automatione systemata, 100 amp 4 polus isolator transibit tutum disiunctio potentiae in conservatione praestans, tam opificum quam armorum tutelam procurans.

3. Systema transportatio: In ferriviis, metros, et aliis infrastructuris onerariis, commutatio in electricis circuitibus segregare adhibetur, tuta vectoribus, baculis, et instrumentis tutandis.

100 Amp 4 Pole Isolator Switch

Parameter productio:

lth (A)	125A	160A	200A	250A	315A	400A	500A	630A	1000A	1250A	1600A	2000A	2500A	3150A	4000A
Ui(V)	750	750	750	750	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
Dielectrica robur (V)	5000	5000	5000	5000	8000	8000	8000	8000	10000	10000	10000	10000	10000	10000	10000
Uimp (KV)	8	8	8	8	12	12	12	12	12	12	12	12	12	12	12
Current le opus (A)
400V AC21B	125	160	200	250	315	400	500	630	1000	1250	1600	2000	2500	3150	4000
400V AC22B	125	160	200	250	315	400	500	630	1000	1250	1600	2000	2500	2500	2500
400V AC23B	125	160	200	250	315	340	425	500	800	1000	1250	1250	1250	1250	1250
750V AC21B	125	160	160	200	315	400	400	500	1000	1000	1600	2000	2500	3150	4000
750V AC22B	125	160	160	160	315	315	315	315	800	800	800	2000	2000	2000	2000
750V AC23B	80	80	100	125	125	125	125	125	400	400	500	1000	1000	1000	1000
220V DC21	125	160	200	250	315	400	500	630
220V DC22	125	160	200	250	315	400	400	500
220V DC23	125	125	160	200
440V DC21	100	125	160	200	315	400	400	500
440V DC22	100	125	160	200	315	400	400	500
440V DC23	100	125	160	200
Motor Power(KW)
400V	63	80	100	132	160	220	280	315	560	560	560	710	710	710	710
750V	75	75	90	110	185	185	185	185	475	475	475	750	750	750	750
lcw (KA Rms,0.1S/1.0S)	20/10	20/10	30/12	30/12	45/20	45/20	50/25	50/25	90/50	90/50	90/50	90/50	90/50	90/50	90/50
Facere et frangere Capacity
lcn(A Rms) AC23B 400V	1250	1250	2000	2000	3150	4000	4000	4000	10000	10000	10000	10000	10000	10000	10000
lcm(A Rms) AC23B 400V	1000	1000	1600	1600	2500	3200	3200	3200	8000	8000	8000	8000	8000	8000	8000
lcm (KA Pecco Value)	12	12	17	17	30	30	40	40	70	70	70	70	70	70	70
Mechanica Vita (tempora)	10000	10000	10000	10000	5500	5500	5500	5500	4000	4000	3000	2500	2500	2500	2500
Electrical Vita (tempora)
Ue=660V Rated Current le
COS∮＝0.95 AC21B	1500	1500	1500	1500	750	750	750	750	600	600	450	400	400	350	350
COS∮＝0.65 AC22B	1000	1000	1000	1000	500	500	500	500	400	400	300	200	200	200	200
COS∮＝0.35 AC23B	500	500	500	500	250	250	250	250	200	200	150	100	100	100	100
Pondus (kg)
3 polos	1	1	2	2	3.5	3.5	4	4	10.5	10.5	16	31	31	42	90
4 polos	1.5	1.5	2.5	2.5	4	4	4.5	4.5	13	13	20	40	40	49	102
Torque operating (Nm)	6.5	6.5	10	10	14.5	14.5	14.5	14.5	27	27	27	60	60	60	110

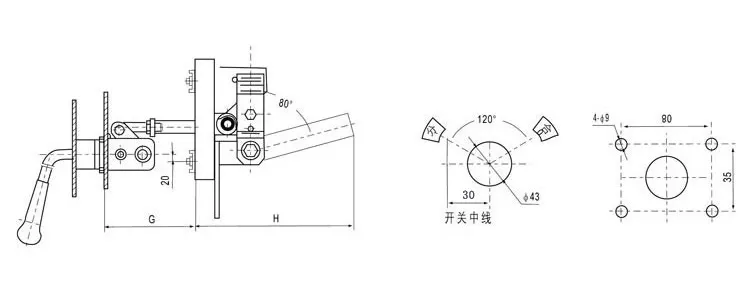

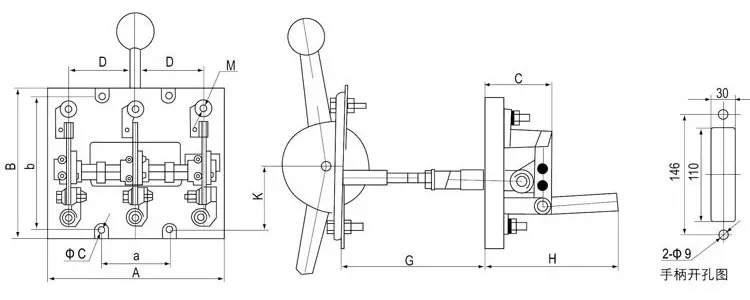

Type		Artus Location (mm)						installation Location (mm)
Type		A	B	C	C1	D	G	a	b	Φc	H	K	M
HD13-100	3P	210	190	80	160	80	250	80	160	Φ7	90	82	M8
HD13-100	4P	290	190	80	160	80	250	160	160	Φ7	90	82	M8
HD13-200	3P	210	190	80	160	80	250	80	160	Φ7	90	82	M8
HD13-200	4P	290	190	80	160	80	250	160	160	Φ7	90	82	M8
HD13-400	3P	240	205	92	180	90	250	90	160	Φ7	88	82	M12
HD13-400	4P	330	205	92	180	90	250	180	160	Φ7	88	82	M12
HD13-600	3P	270	300	100	188	100	250	100	160	Φ9	88	82	M16
HD13-600	4P	370	300	100	188	100	250	200	160	Φ9	88	82	M16
HD13-1000	3P	325	315	116	226	120	250	120	160	Φ9	85	78	2-M12
HD13-1000	4P	450	315	116	226	120	250	240	160	Φ9	85	78	2-M12
HD13-1500	3P	360	355	125	238	130	250	130	160	Φ11	85	78	4-M12
HD13-1500	4P	490	355	125	238	130	250	260	160	Φ11	85	78	4-M12
HD13-2000	3P	360	355	125	238	130	250	130	160	Φ11	85	78	4-M12
HD13-2000	4P	490	355	125	238	130	250	260	160	Φ11	85	78	4-M12

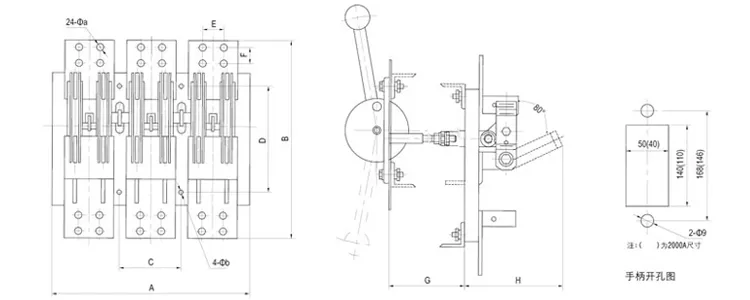

Type	A	B	C	D	E	F	H	Φa	Φb	G
HD13-2000	520	350	170	180	48	36	277.5	12	9	250
HD13-3000	600	390	200	180	60	40	233	16	11	250

100 Amp 4 Pole Isolator Switch

Productio FAQ:

Q: Quid est 100 amp 4 polus isolator switch?

A: Commutatio manualis est ut tuto disiungant quattuor-filum systematis, typice trium phase plus neutrorum, a potestate copia. Rated in 100 amps, visibilis et certa solitudo punctum praebet ad conservationem et salutem proposita.

Q: Quomodo per 100 amp 4 polus isolator transiens ab 100 amp 3 polus isolator transibit?

A: A 3 polus isolator tres tantum lineas Phase disiungit. Polus 4 isolator tres gradus et neutras simul disiungit, cum totum ambitum solitudo facit. Hoc periculum residua currentis fluxus minuit et in quibusdam applicationibus altiorem salutem praebet.

Q: Quae sunt praecipua beneficia utendi 100A 4 polus isolator transibit?

A: Clavis commoda complectitur integram disiunctio gradus et neutras, consilium compactum quod spatium servat, otium institutionis et summa constantia. Patet, visibilis punctus confractus praebet qui salutem in tutela auget.
