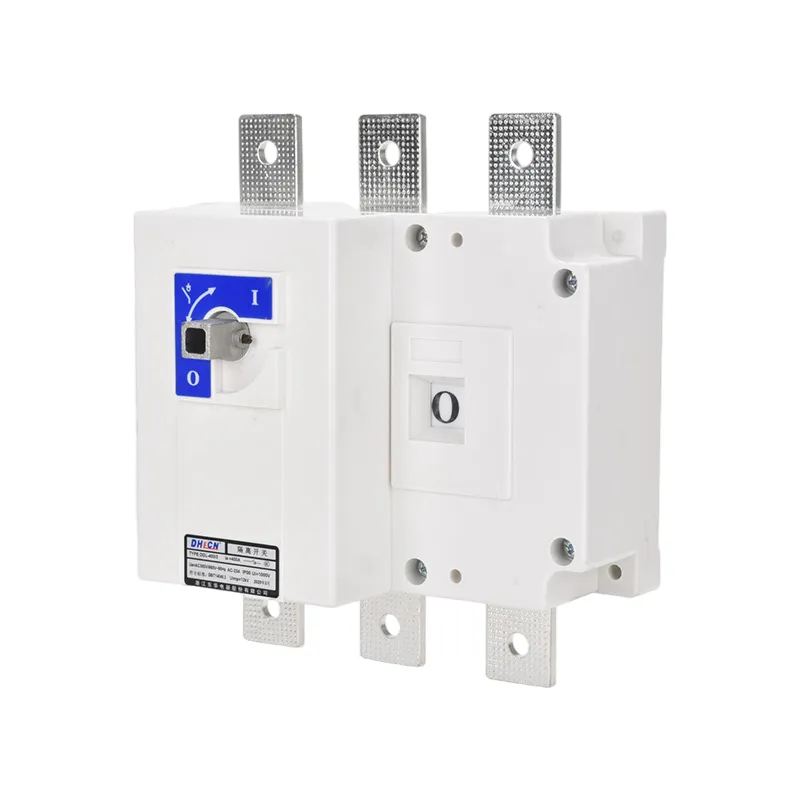

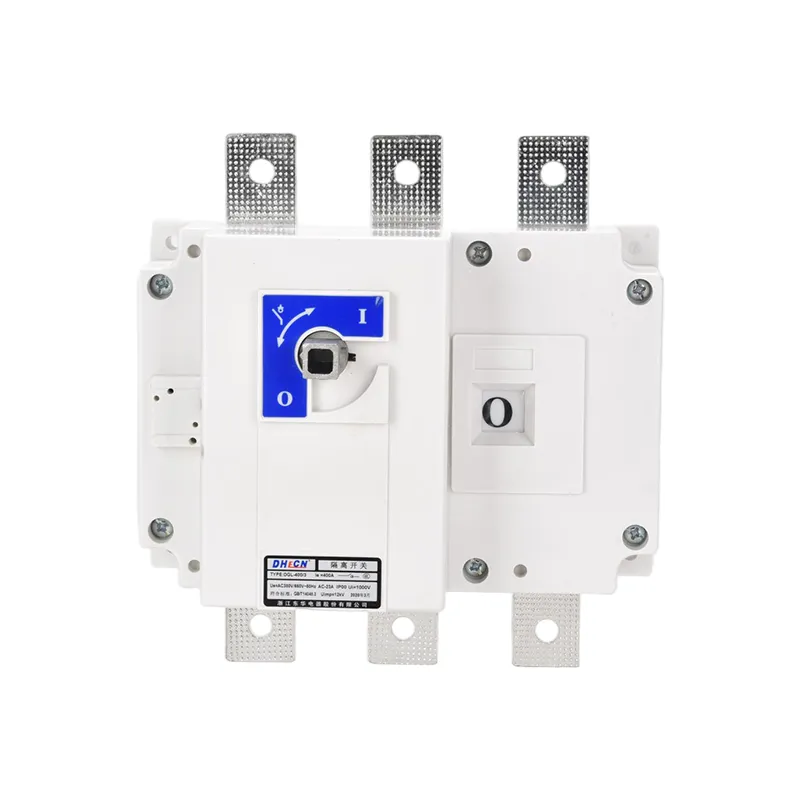

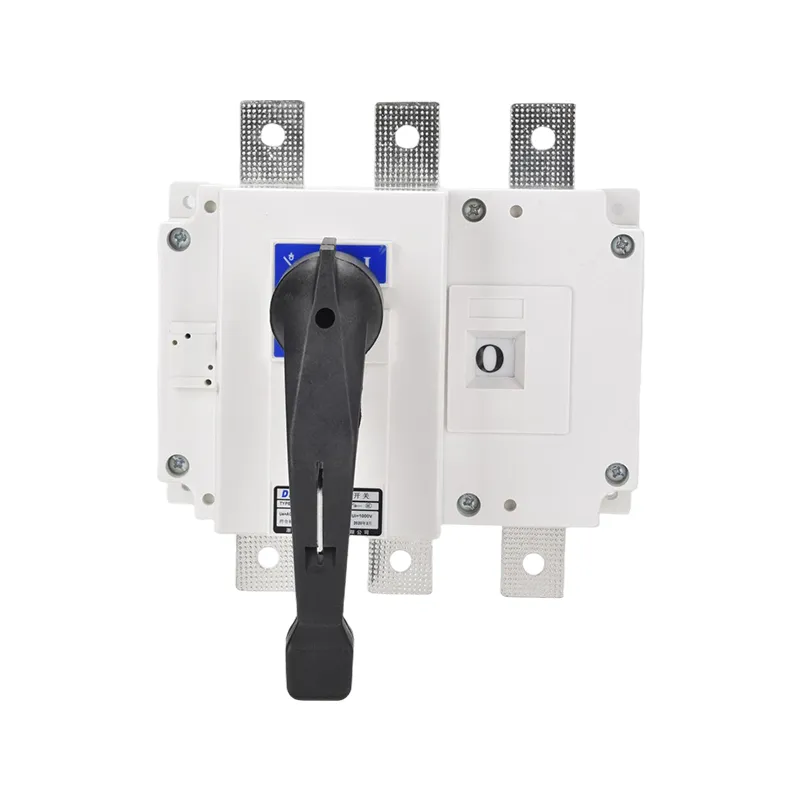

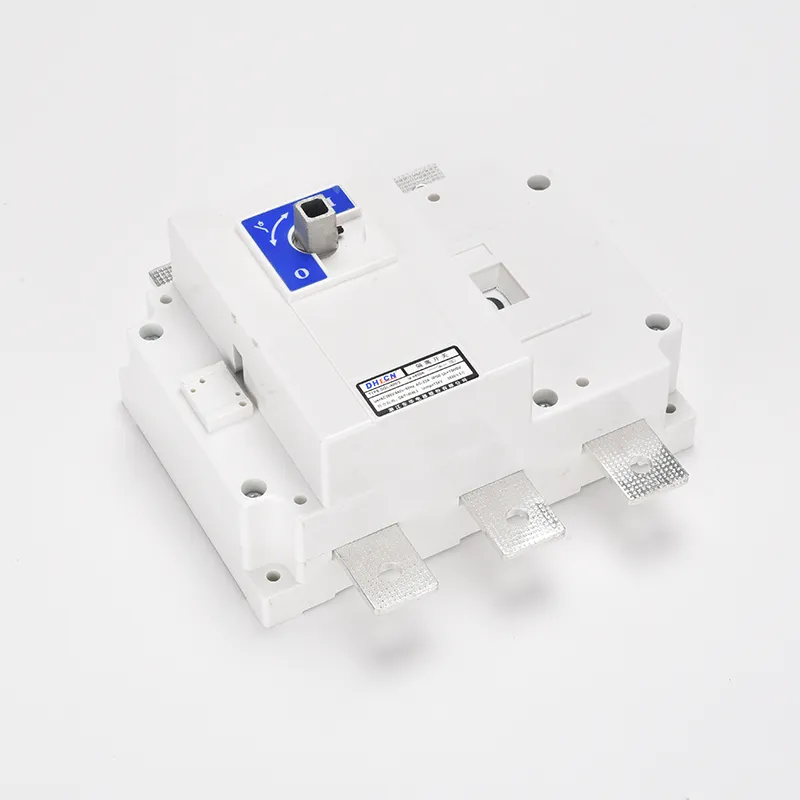

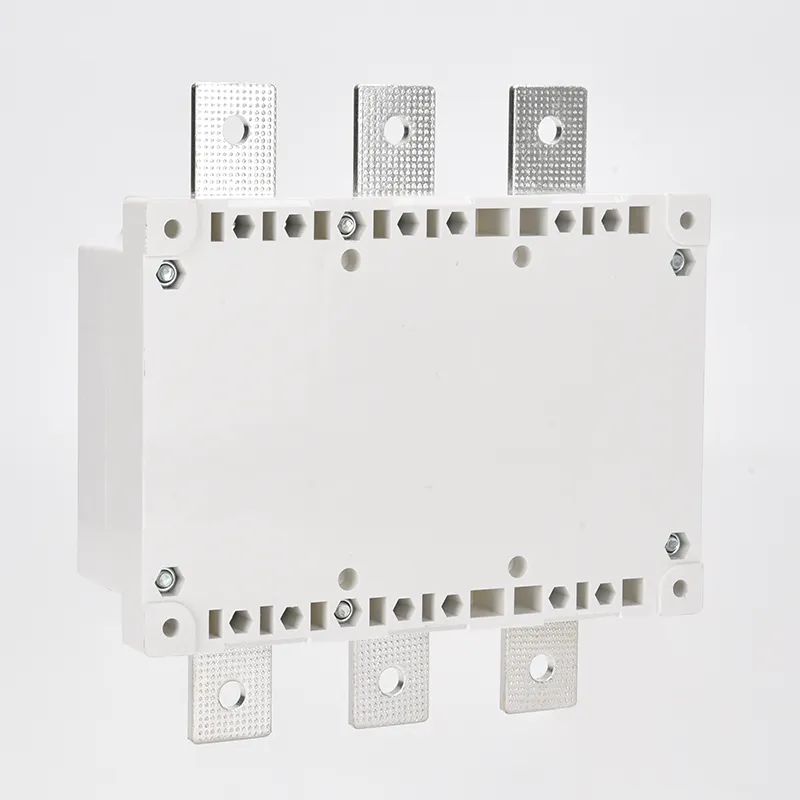

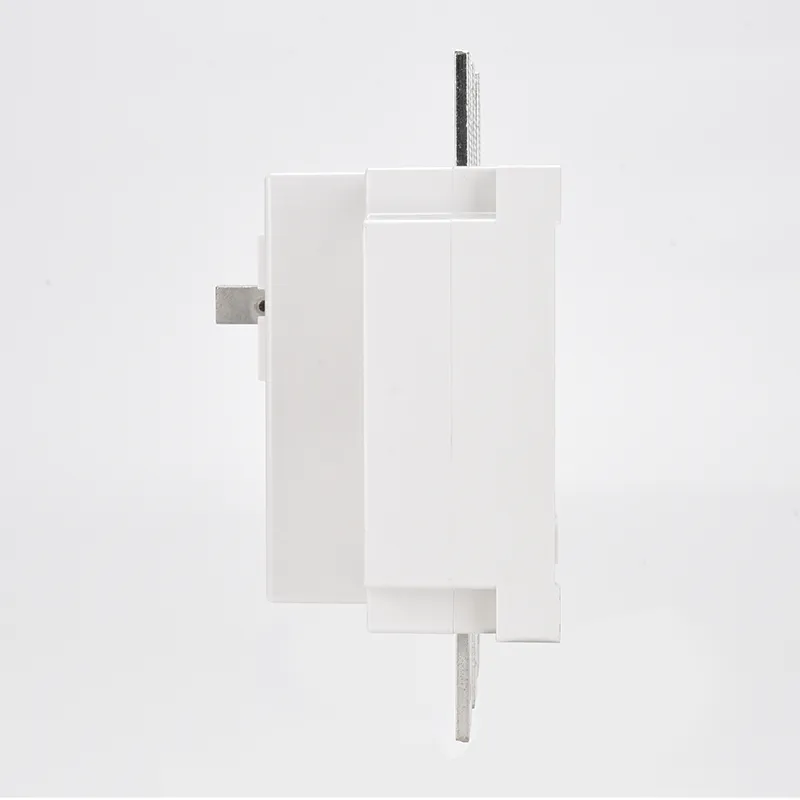

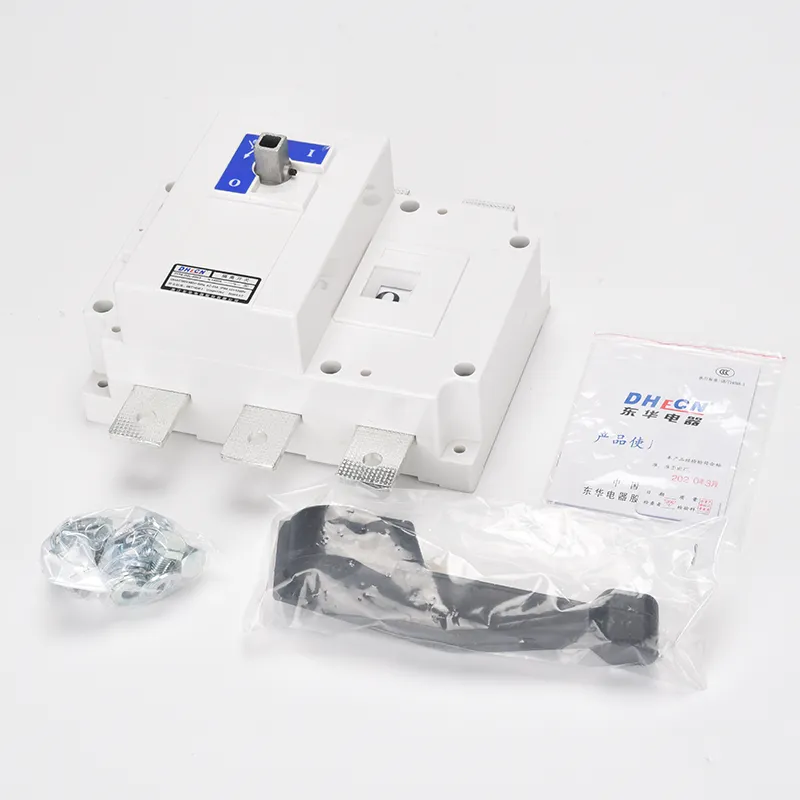

100 Amp 3 Phase Isolator Switch 100a

A 100 amp 3 tempus isolator 100a transibit in commutatione machinae tres phase AC systemata disposita. Praesertim ad solitudo ambitum adhibita et ad circulos faciendos vel frangendos sub condiciones nullas onerandas.

Core functiones

1. Circuit solitudo: Tutus connectit vel disiungit circuitus sub nullis oneris conditionibus, ut tutam sustentationem in tuto collocet.

2.Operational Coordinatio: Opera in coordinatione cum praevaricatoribus ambitum ad statum operantem armorum mutandum.

3. Operationes Lond: Commutationes linearum expositae vel transformationes expositae in et extra servitium dat.

4. Visibilis Break Point: Providet manifestam disiunctio punctum, ad inspectionem et sustentationem directam.

Technical Features

1.Optimized Structure: 100 amp 3 phase isolator 100a transibit unum mechanismum operantem adhibet. Contactus motores arcuati et contactus fixi in unum agunt, ut simul omnes tres gradus commutationes curent. Hoc contactum reducit deviationis peregrinationes et melioris constantiae.

2. Rease institutionis et sustentationis: Consilium compactum 100 amp 3 phase isolator 100a switch permittit ad institutionem convenientem et conservationem gratuita conservat.

Parameter productum:

lth (A)	125A	160A	200A	250A	315A	400A	500A	630A	1000A	1250A	1600A	2000A	2500A	3150A	4000A
Ui(V)	750	750	750	750	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
Dielectrica robur (V)	5000	5000	5000	5000	8000	8000	8000	8000	10000	10000	10000	10000	10000	10000	10000
Uimp (KV)	8	8	8	8	12	12	12	12	12	12	12	12	12	12	12
Current le opus (A)
400V AC21B	125	160	200	250	315	400	500	630	1000	1250	1600	2000	2500	3150	4000
400V AC22B	125	160	200	250	315	400	500	630	1000	1250	1600	2000	2500	2500	2500
400V AC23B	125	160	200	250	315	340	425	500	800	1000	1250	1250	1250	1250	1250
750V AC21B	125	160	160	200	315	400	400	500	1000	1000	1600	2000	2500	3150	4000
750V AC22B	125	160	160	160	315	315	315	315	800	800	800	2000	2000	2000	2000
750V AC23B	80	80	100	125	125	125	125	125	400	400	500	1000	1000	1000	1000
220V DC21	125	160	200	250	315	400	500	630
220V DC22	125	160	200	250	315	400	400	500
220V DC23	125	125	160	200
440V DC21	100	125	160	200	315	400	400	500
440V DC22	100	125	160	200	315	400	400	500
440V DC23	100	125	160	200
Motor Power(KW)
400V	63	80	100	132	160	220	280	315	560	560	560	710	710	710	710
750V	75	75	90	110	185	185	185	185	475	475	475	750	750	750	750
lcw (KA Rms,0.1S/1.0S)	20/10	20/10	30/12	30/12	45/20	45/20	50/25	50/25	90/50	90/50	90/50	90/50	90/50	90/50	90/50
Facere et frangere Capacity
lcn(A Rms) AC23B 400V	1250	1250	2000	2000	3150	4000	4000	4000	10000	10000	10000	10000	10000	10000	10000
lcm(A Rms) AC23B 400V	1000	1000	1600	1600	2500	3200	3200	3200	8000	8000	8000	8000	8000	8000	8000
lcm (KA Pecco Value)	12	12	17	17	30	30	40	40	70	70	70	70	70	70	70
Mechanica Vita (tempora)	10000	10000	10000	10000	5500	5500	5500	5500	4000	4000	3000	2500	2500	2500	2500
Electrical Vita (tempora)
Ue=660V Rated Current le
COS∮＝0.95 AC21B	1500	1500	1500	1500	750	750	750	750	600	600	450	400	400	350	350
COS∮＝0.65 AC22B	1000	1000	1000	1000	500	500	500	500	400	400	300	200	200	200	200
COS∮＝0.35 AC23B	500	500	500	500	250	250	250	250	200	200	150	100	100	100	100
Pondus (kg)
3 polos	1	1	2	2	3.5	3.5	4	4	10.5	10.5	16	31	31	42	90
4 polos	1.5	1.5	2.5	2.5	4	4	4.5	4.5	13	13	20	40	40	49	102
Torque operating (Nm)	6.5	6.5	10	10	14.5	14.5	14.5	14.5	27	27	27	60	60	60	110

Type	Frame Location and Installation Size
GL-125～630A	A	B	C	D	D1	E	φL	J	J1	K	N	P	R	S	T	U	φX	Y	F	H
125A-160A/3	140	135	125	27	92	73	6	120	120	65	85	36	20	25	4	115	9	25	59	10
125A-160A/4	170	135	125	27	92	73	6	150	150	65	85	36	20	25	4	115	9	25	59	10
200A-250A/3	180	170	138	35	98	86	6	160	160	90	115	50	25	30	4	140	11	25	76	15
200A-250A/4	230	170	138	35	98	86	6	210	210	90	115	50	25	30	4	140	11	25	76	15
315A-400A/3	230	240	165	50	135	110	7	210	210	140	145	65	32	40	5	206	11	37	94	20
315A-400A/4	290	240	165	50	135	110	7	275	275	140	145	65	32	40	5	206	11	37	94	20
500A-630A/3	230	260	165	50	135	110	7	210	210	140	145	65	40	50	6	220	13	37	94	20
500A-630A/4	290	260	165	50	135	110	7	275	275	140	145	65	40	50	6	220	13	37	94	20

Type	Magnitudo
GL-125～630A	I	M	Z	W	Q
125A	55	5.5	85	190	218
160A	55	5.5	85	190	218
200A	55	5.5	85	190	218
250A	55	5.5	85	190	218
315A	60	6.5	130	240	270
400A	60	6.5	130	240	270
500A	60	6.5	130	240	270
630A	60	6.5	130	240	270

Type	Frame Location and Installation Size
GL-1000～4000A	A	B	J	J1	N	R	S	T	Y
1000-1250A/3	378	312	355	355	186	60	56	8	48
1000-1250A/4	492	312	470	470	248	60	56	8	48
1600A/3	378	338	355	355	186	80	69	8	49
1600A/4	492	338	470	470	248	80	69	10	49
2000-500A/3	378	455	355	355	186	80	127	10	78.5
2000-500A/4	492	455	470	470	248	80	127	10	78.5
3150-4000A/3	378	514	355	355	186	120	157	12	78.5
3150-4000A/4	492	514	470	470	248	120	157	12	78.5

Product FAQ:

Q: Potestne 100 amp 3 phase isolator 100a switch operari sub onere?
A: No. In 100 amp 3 phase isolator 100a commutatio destinatur usui sub nullis condicionibus oneris. Non utendum est gyros facere vel frangere qui currentes exercent normales. Pro commutatione onus, ambitus praevaricator vel onus interrumpentis switch utendum est.
Q: Quae res communiter in 100 amp 3 phase isolator 100a transibit?
A: Maximum qualitas 100 amp 3 Phase isolator permutat plerumque pluma flamma retardat vel roboratur insterni thermoplastic/metalicae, aeris vel argenti patellae aeris contactibus ad resistentiam et durabilitatem demissa, et ferrum robustum vel machinationes operatrices admisceas. Haec diutissime servent vitam et certam operationem.
Q: Quomodo 100 amp 3 phase isolator 100a transibit a 100 amp 3 Phase ambitus ruptor differunt?
A: A 100 amp 3 Phase ambitus praevaricator onere et culpas currentes interrumpere potest, cum 100 amp 3 phase isolator transibit solum disiunctio sub nullis oneris conditionibus praebet. Partes a 100 amp 3 huius temporis spectatam certam, certam separationem pro salute praestare debent, dum functiones tutelae apud fuses vel praevaricatores manent.
