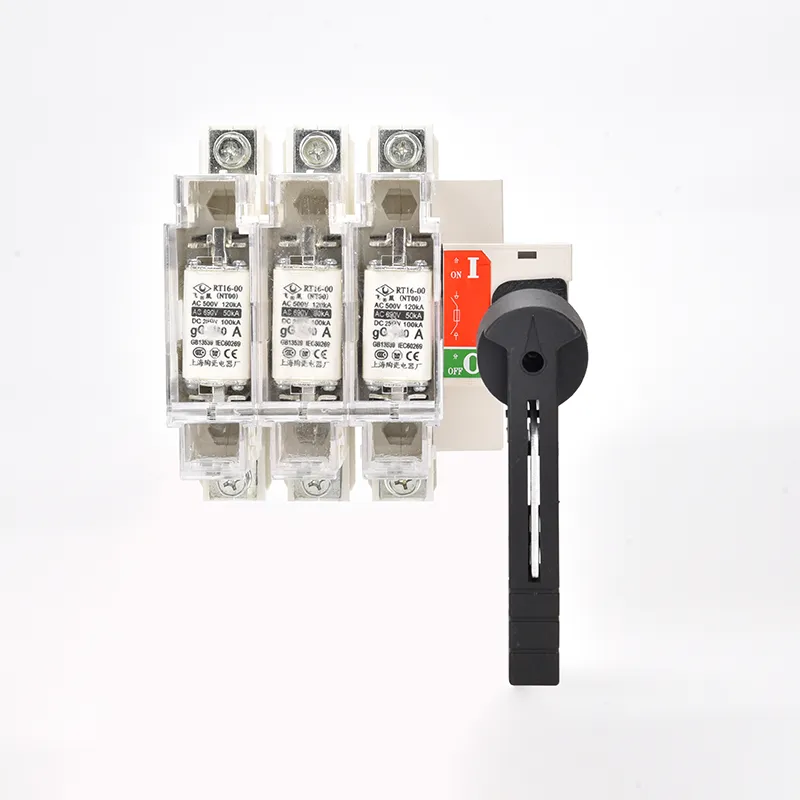

100a Triplex poli III Phase Fused Isolator Switch

To bring a smooth user experience, Wenzhou XiFa Electric Power Equipment Co., Ltd not only use premium raw material on each 100a triple pole 3 phase fused isolator switch such as to adopts flame retardant engineering plastics on hosing to make a better performance on mechanical strength and insulation protection, but also undergo necessary factory tests for each 100a triple pole 3 phase fused isolator switch such as insulation resistance measurement to confirm dielectric performance and operation consistency and interlock test to verify safe and certa machinatio perficiendi.

Mitte Inquisitionem

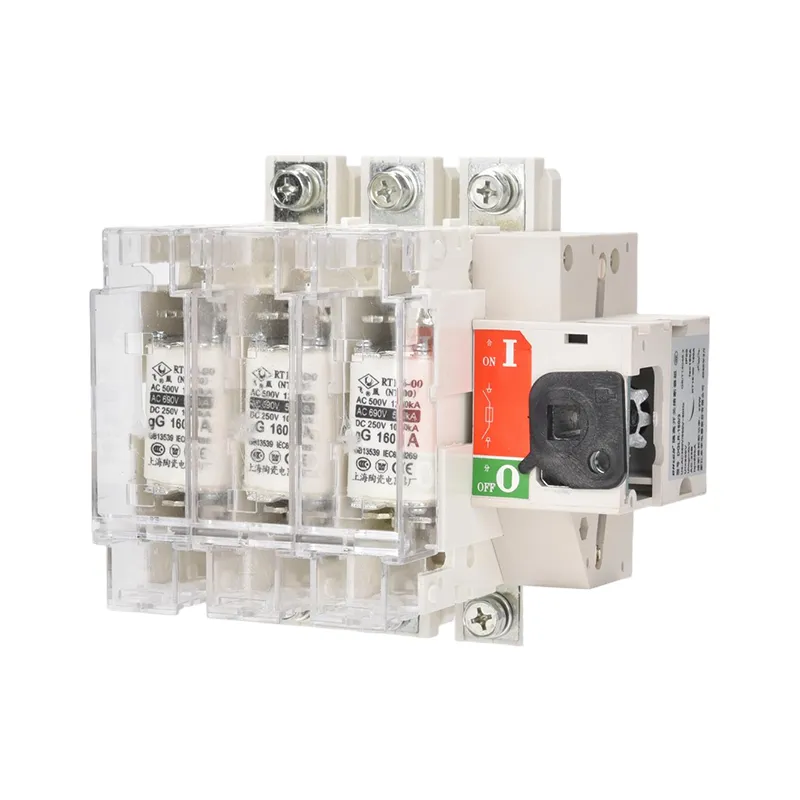

depictio producti

Functions of a 100a polus triplex 3 tempus confusus isolator switch

1.Power Isolatio: Cum electricae wiring inspectionem vel sustentationem requirit, 100a polus triplex 3 periodus infusus isolator transibit potestatem copiam ad conservandum adiutorium salutem disiungit.

2. Potestas Potestatis: Permittit mutandi ambitum in vel off, servans operationem normalem et certa ratio.

3.Fault Interruptio: In eventu brevi ambitus vel oneris, elementum fuse liquefacit, interclusio motorum currentium et tutelaris aliorumque connexorum instrumentorum ab electrico damno.

4. Circuit et Equipment Praesidium: Servando contra conditiones abnormes, adiumenta switch conservant circa stabilitatem et prolongat servitium vitae e rudentibus et instrumentis.

Features of a 100a polus triplex 3 tempus confusus isolator switch

1. Integrated Design: Conjungit functiones fusi et isolatoris in una arte, alta fide tradens.

2. Compact Construction: Parvus in magnitudine, facilis ad institutionem, et spatii salutaris.

3. Securus Fuse Substitutio: Commutatio et fuse partes separatae sunt, fuse postea velox et opportunum faciens.

4. Lata applicabilitas: Apta usui per varios circulos humilium intentionum.

100a Triple Pole 3 Phase Fused Isolator Switch

Parameter productum:

Artus Current A	Ratum Current of Fuse (A)	Modus Fuse
63	10、20、30、40、50、63	00C
160	63、80、100、125、160	0
250	160	0
250	200、250	1
400	300、315、400	2
630	400、500、630	3

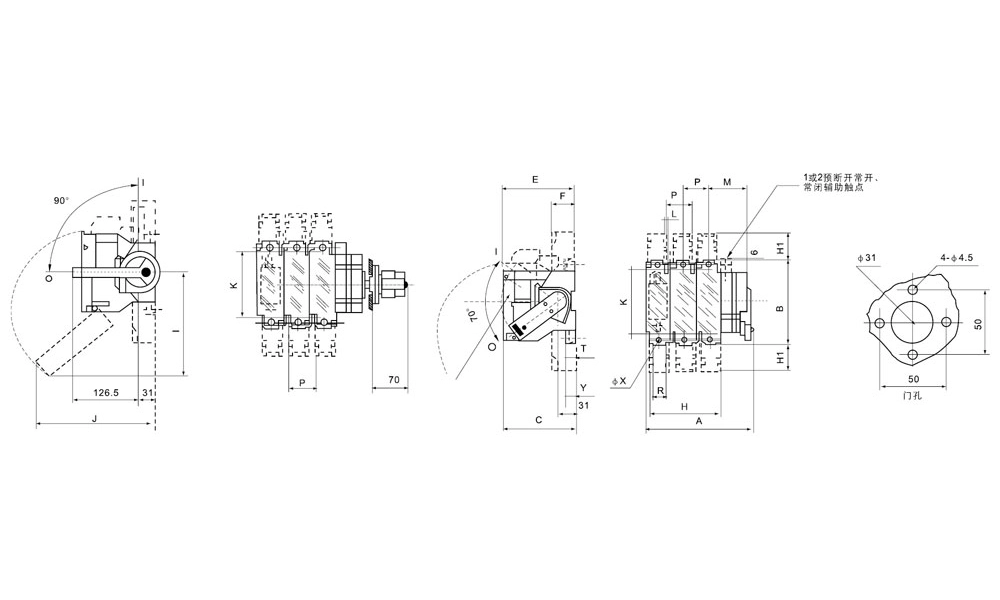

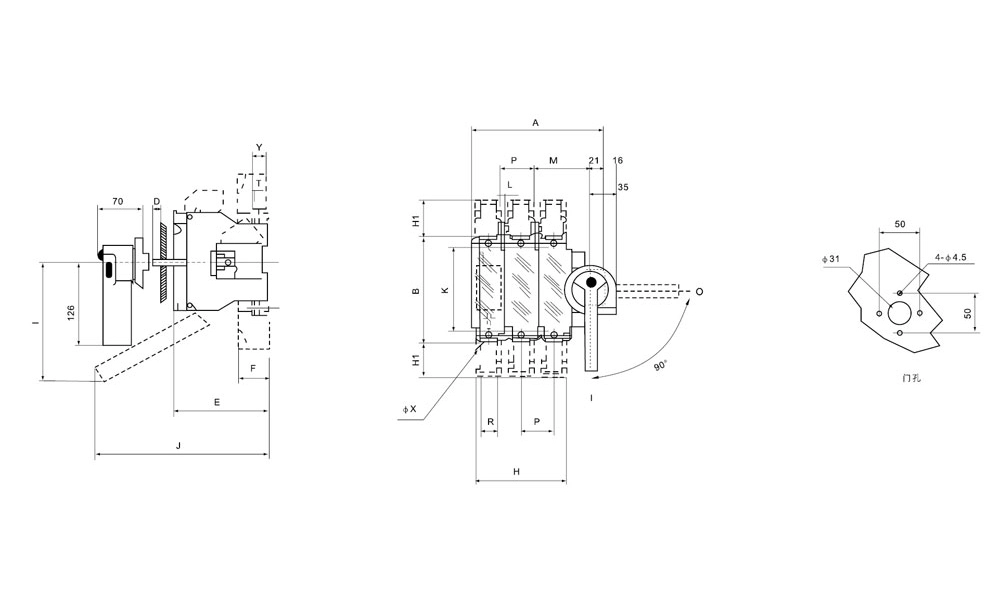

Frontem Type

Type	Magnitudinem Fuse	Frame Location and Installation Size
GLR-63～400A		A	B	D	E	F	H	H1	I	J	K	L	M	P	R	T	φX	Y
63A/3	0～00C	152	118	20～30	117				159	145	106	5.4	62.5	32
63A/4	0～00C	184	118	20～30	117				159	145	106	5.4	62.5	32
160A/3	0～00	164	162	28～30	126	44	108	53	141	189	127	5.4	65	36	20	2.5	8.5	19.5
160A/4	0～00	200	162	28～30	126	44	144	53	141	189	127	5.4	65	36	20	2.5	8.5	19.5
250/3	1	236	195	28～30	146	65	180	75	185	251	162	6.4	90.5	60	32	2.5	11	19.5
250/4	1	296	195	28～30	146	65	240	75	185	251	162	6.4	90.5	60	32	2.5	11	19.5
400/3	2	278	205	28～30	149	65	192	75	200	260	172	6.4	121	66	50	3	11	20
400/4	2	344	205	28～30	149	65	258	75	200	260	172	6.4	121	66	50	3	11	20

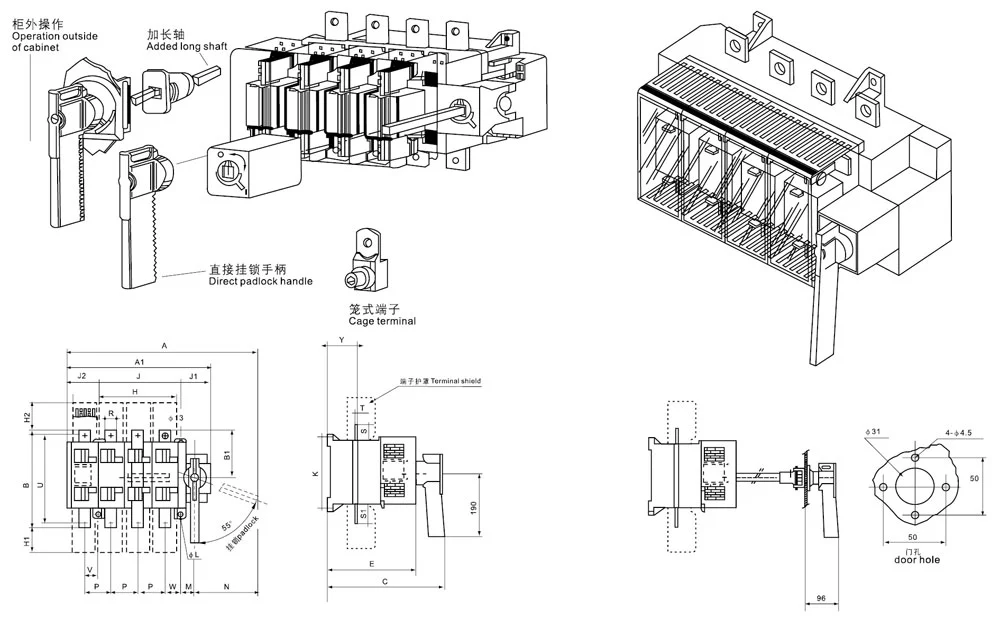

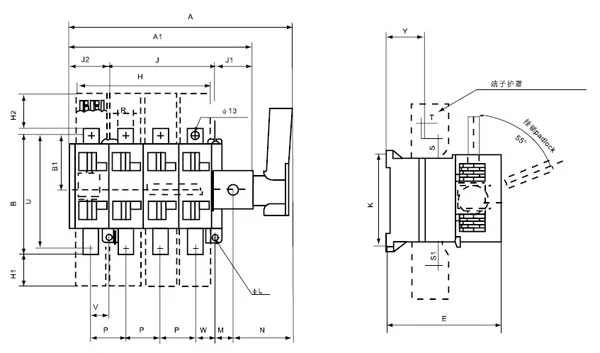

Type	Magnitudinem Fuse	Frame Location and Installation Size
GLR-400～630A		A	A1	B	B1	C	E	H	H1	H2	J	J2	J1	K	M	N	P	R	S	S1	T	V	U	W	φL	Y
400A/3	2	414	285	238	115	307	221	190	71	79	210	70	65	180	32.5	162	65	32	35	43	5	40.5	208	39.5	7	69
400A/4	2	474	345	238	115	307	221	255	71	79	210	70	65	180	32.5	162	65	32	35	43	5	24.5	208	39.5	7	69
630A/3	3	470	345	300	150	348	268	235	85	85	250	100	76	250	38.5	162	80	50	50	50	7	45.5	260	44.5	9	72
630A/4	3	550	425	300	150	348	268	315	85	85	250	100	76	250	38.5	162	80	50	50	50	7	34.5	260	445	9	72

Praeter Type

Type	Magnitudinem Fuse	Frame Location and Installation Size
GLR-63～400A		A	B	C	E	F	H	H1	I	J	K	L	M	P	R	T	φX	Y
63A/3	0～00C	133	118	134	126.5		116.5		159	145	106	5.4	36	32
63A/4	0～00C	164	118	117	126.5		116.5		159	145	106	5.4	36	32
160A/3	0～00	150	162	173	126.5	44	108	53	141	189	127	5.4	38	36	20	2.5	8.5	19.5
160A/4	0～00	186	162	173	126.5	44	144	53	141	189	127	5.4	38	36	20	2.5	8.5	19.5
250/3	1	253	195	173	146	65	180	75	185	251	162	6.4	81	60	32	2.5	11	19.5
250/4	1	313	195	173	146	65	240	75	185	251	162	6.4	81	60	32	2.5	11	19.5
400/3	2	271	205	173	149	65	192	75	200	260	172	6.4	86	66	50	3	11	20
400/4	2	337	205	173	149	65	250	75	200	260	172	6.4	86	66	50	3	11	20

Type	Magnitudinem Fuse	Frame Location and Installation Size
GLR-400～630A		A	A1	B	B1	E	H	H1	H2	J	J2	J1	K	M	N	P	R	S	S1	T	V	U	W	φL	Y
400A/3	2	500	285	238	115	221	190	70	79	210	70	65	180	32.5	119	65	32	30	43	5	40.5	208	39.5	7	69
400A/4	2	560	345	238	115	221	255	70	79	210	70	65	180	32.5	119	65	32	30	43	5	24.5	208	39.5	7	69
630A/3	3	550	345	300	150	268	235	100	85	250	100	76	250	38.5	119	80	50	50	50	7	45.5	260	44.5	9	72
630A/4	3	630	425	300	150	268	315	100	85	250	100	76	250	38.5	119	80	50	50	50	7	34.5	260	445	9	72

100a Triple Pole 3 Phase Fused Isolator Switch

Product FAQ:

Q: Quae species fuses adhibentur in 100a polo triplici 3 periodo fusi isolator transibit?

A: Maximum fracturae capacitatis (HBC) nexus fuse, qui typice pro applicationibus humilibus voltationibus aestimantur, adhibita sunt. Hae fusiones ordinantur ad currentes culpas interrumpendas celeriter et fideliter, ad armorum amni tutelam procurandam.

Q: Quaenam sunt principales materiae in constructione poli triplicem 100a 3 phase mixti transitum isolator?

A: Habitatio flammae thermoplasticae vel schedae chalybi retardant solet, contactus aeris vel argenti patella in melius conductivity, et fuse corpora e ceramico vel composita insulatione aucti. Ansa operativa saepe metallum est cum operculo plastico tutela.

Q: Estne 100a polus triplex 3 Phase fusi isolator transibit apta ad institutionem velit?

A: Ita, sed institui debet in clausura cum opportuno IP rating (ut IP65 vel superiore) ut pulvis, umor et condiciones velit sustinere.
