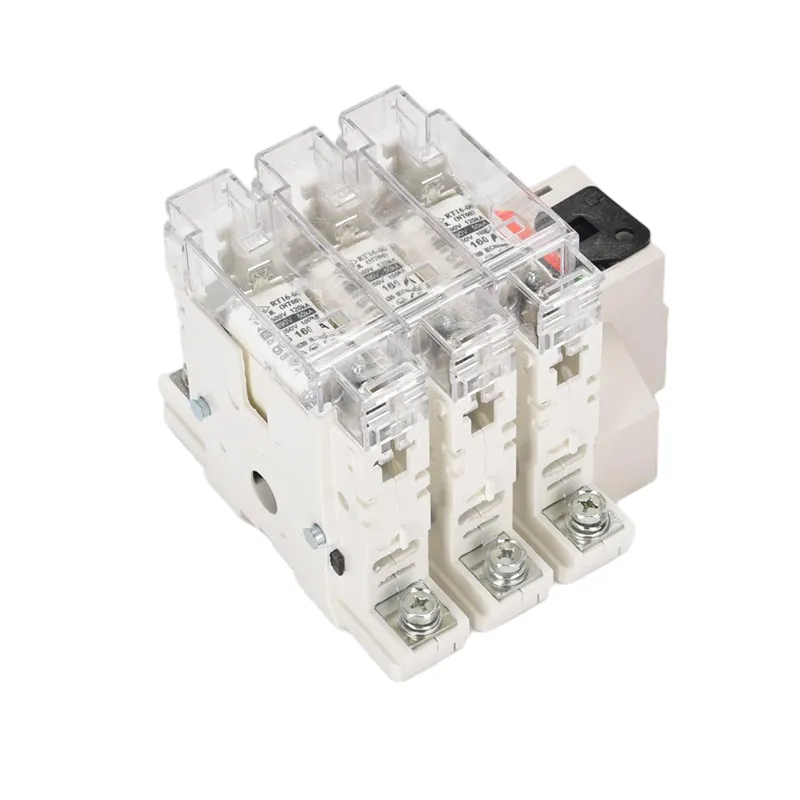

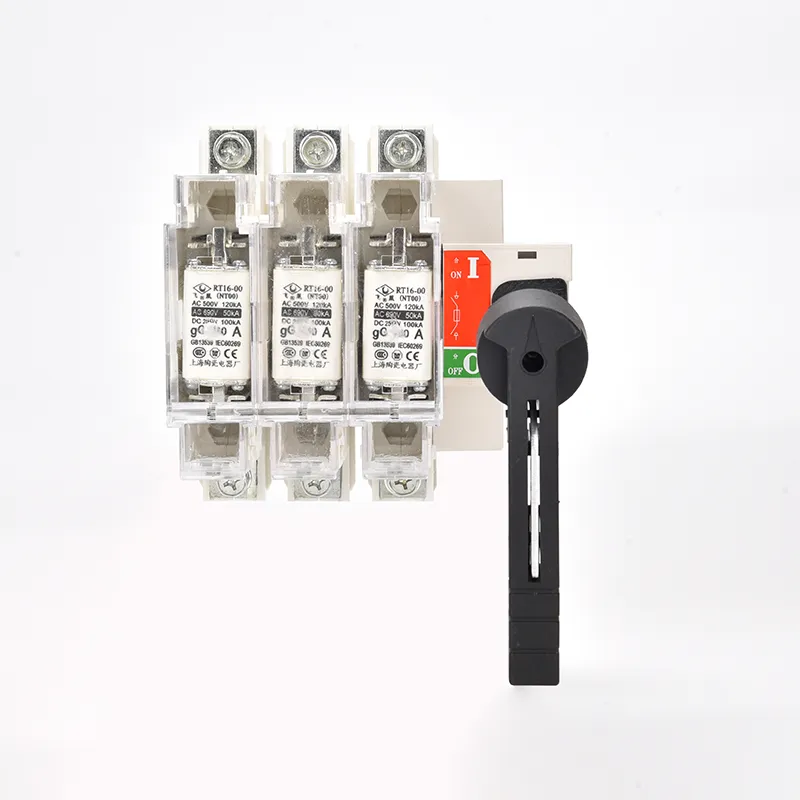

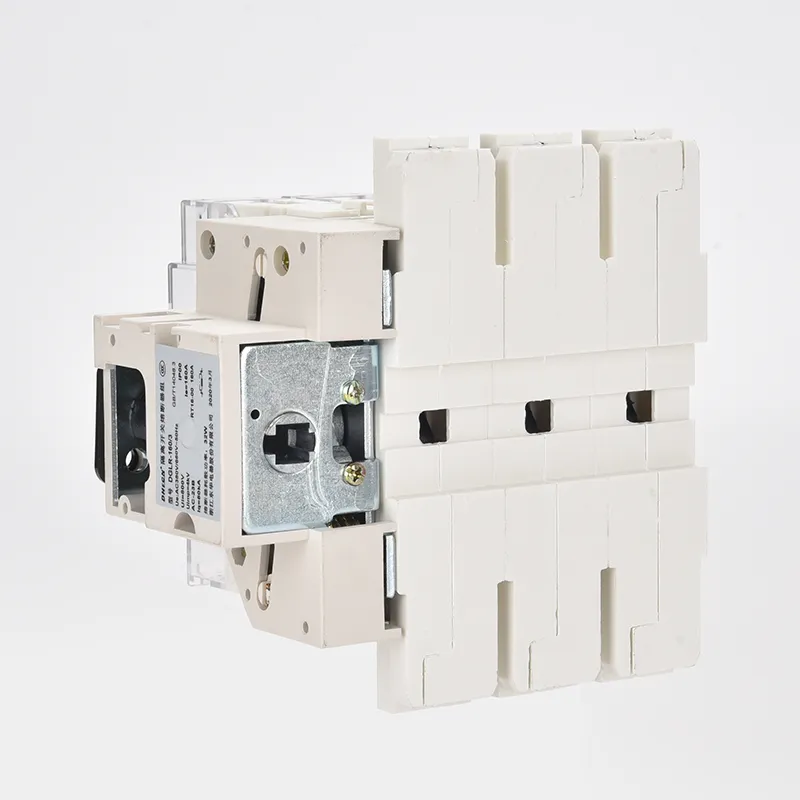

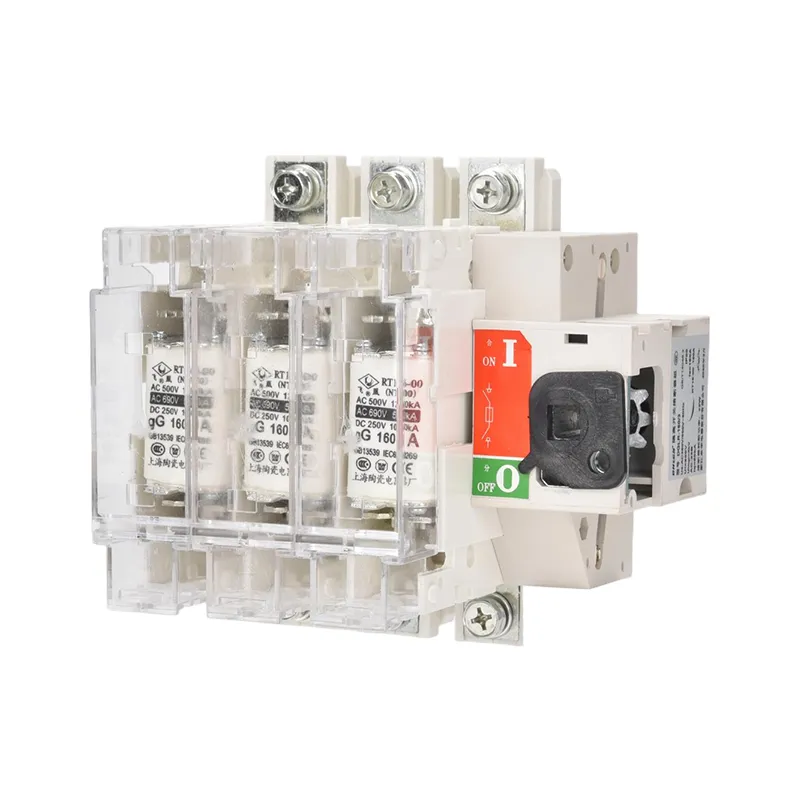

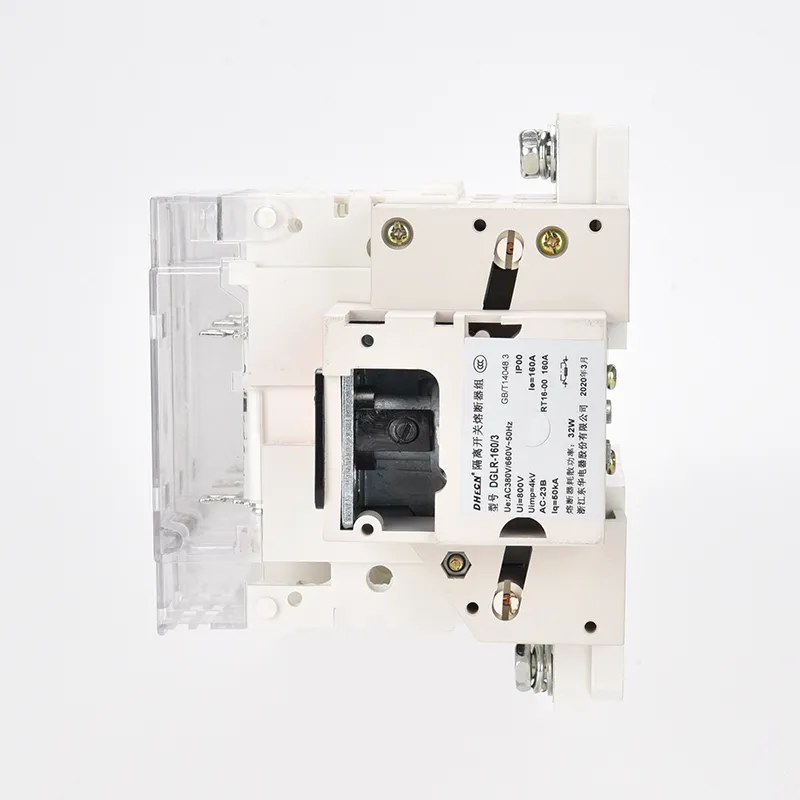

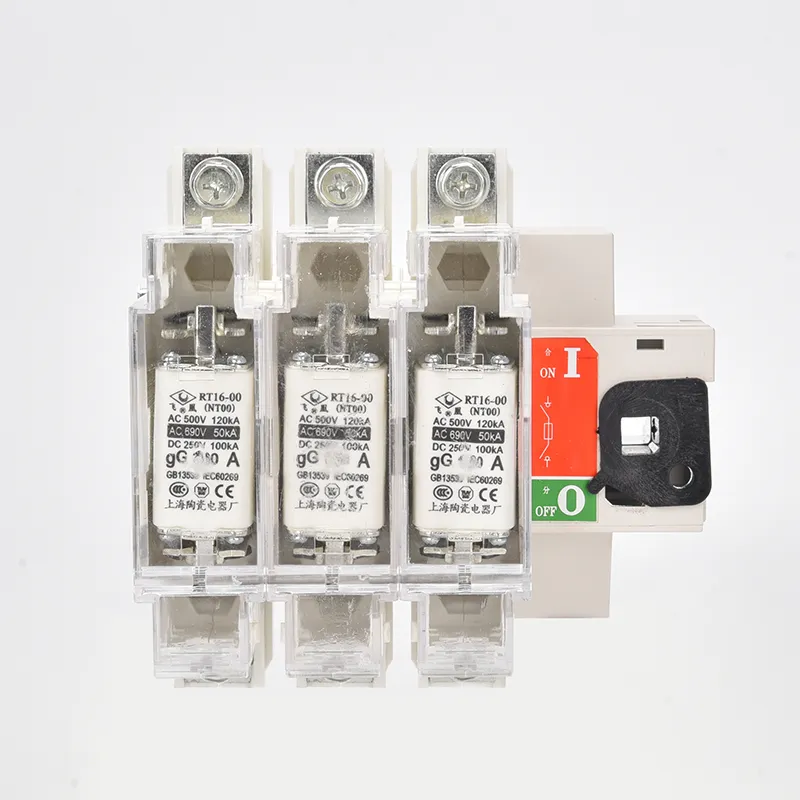

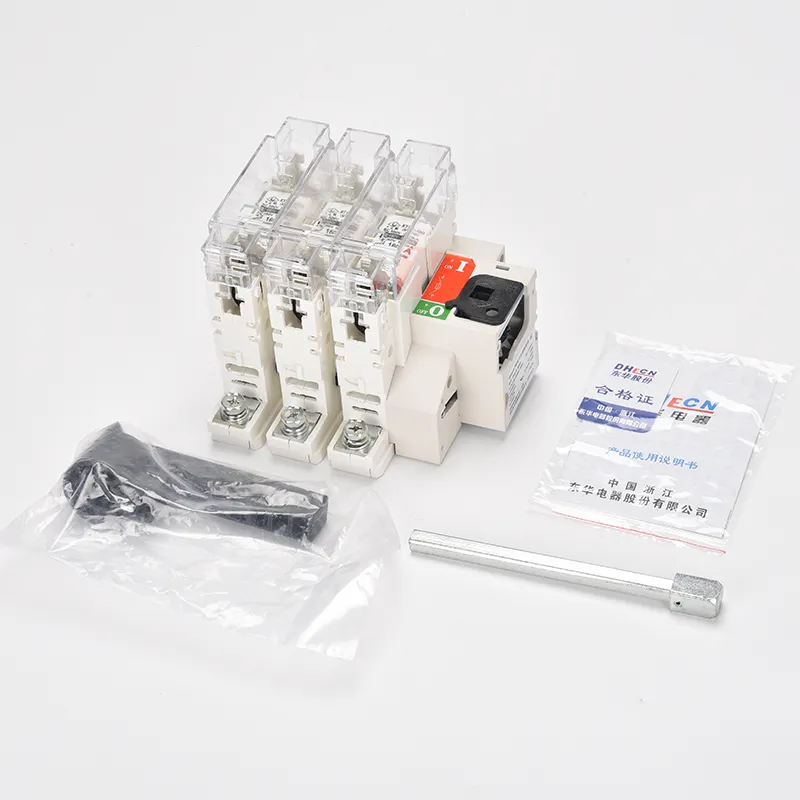

480 volt 3 Phase 400 amp disiunctio fusae switch agit munus criticum in circuitibus electricis. Coniungendo functiones transibit fuse et cultri, tum facultatem tutelae et operationem opportunam praebet. Propter unicum consilium mechanicum et operationem praecisam, 480 volt 3 phase 400 amp disiunctio fusae switch facta est necessaria pars in systematis electrica recentioribus.
1. Per normalem operationem, transitum disiunctio moderatur nexum et disiunctio potentiae, ut lenis ambitus continuitatem obtineat. Cum sustentatio requiritur, switch disiunctio mixta praebet punctum disiunctio corporis manifestam, curatores et apparatum custodiendo.
2. In eventu oneris vel ambitus brevissimi, elementum fusum intra transitum cito liquescit, culpa currenti interrupto et ambitum et machinas a damno conexas tutatur.
| Artus Current A | Ratum Current of Fuse (A) | Modus Fuse |
| 63 | 10、20、30、40、50、63 | 00C |
| 160 | 63、80、100、125、160 | 0 |
| 250 | 160 | 0 |
| 200、250 | 1 | |
| 400 | 300、315、400 | 2 |
| 630 | 400、500、630 | 3 |
Frontem Type
| Type | Magnitudinem Fuse | Frame Location and Installation Size | ||||||||||||||||
| GLR-63～400A |
|
A | B | D | E | F | H | H1 | I | J | K | L | M | P | R | T | φX | Y |
| 63A/3 | 0～00C | 152 | 118 | 20～30 | 117 |
|
|
|
159 | 145 | 106 | 5.4 | 62.5 | 32 |
|
|
|
|
| 63A/4 | 0～00C | 184 | 118 | 20～30 | 117 |
|
|
|
159 | 145 | 106 | 5.4 | 62.5 | 32 |
|
|
|
|
| 160A/3 | 0～00 | 164 | 162 | 28～30 | 126 | 44 | 108 | 53 | 141 | 189 | 127 | 5.4 | 65 | 36 | 20 | 2.5 | 8.5 | 19.5 |
| 160A/4 | 0～00 | 200 | 162 | 28～30 | 126 | 44 | 144 | 53 | 141 | 189 | 127 | 5.4 | 65 | 36 | 20 | 2.5 | 8.5 | 19.5 |
| 250/3 | 1 | 236 | 195 | 28～30 | 146 | 65 | 180 | 75 | 185 | 251 | 162 | 6.4 | 90.5 | 60 | 32 | 2.5 | 11 | 19.5 |
| 250/4 | 1 | 296 | 195 | 28～30 | 146 | 65 | 240 | 75 | 185 | 251 | 162 | 6.4 | 90.5 | 60 | 32 | 2.5 | 11 | 19.5 |
| 400/3 | 2 | 278 | 205 | 28～30 | 149 | 65 | 192 | 75 | 200 | 260 | 172 | 6.4 | 121 | 66 | 50 | 3 | 11 | 20 |
| 400/4 | 2 | 344 | 205 | 28～30 | 149 | 65 | 258 | 75 | 200 | 260 | 172 | 6.4 | 121 | 66 | 50 | 3 | 11 | 20 |
| Type | Magnitudinem Fuse | Frame Location and Installation Size | ||||||||||||||||||||||||
| GLR-400～630A |
|
A | A1 | B | B1 | C | E | H | H1 | H2 | J | J2 | J1 | K | M | N | P | R | S | S1 | T | V | U | W | φL | Y |
| 400A/3 | 2 | 414 | 285 | 238 | 115 | 307 | 221 | 190 | 71 | 79 | 210 | 70 | 65 | 180 | 32.5 | 162 | 65 | 32 | 35 | 43 | 5 | 40.5 | 208 | 39.5 | 7 | 69 |
| 400A/4 | 2 | 474 | 345 | 238 | 115 | 307 | 221 | 255 | 71 | 79 | 210 | 70 | 65 | 180 | 32.5 | 162 | 65 | 32 | 35 | 43 | 5 | 24.5 | 208 | 39.5 | 7 | 69 |
| 630A/3 | 3 | 470 | 345 | 300 | 150 | 348 | 268 | 235 | 85 | 85 | 250 | 100 | 76 | 250 | 38.5 | 162 | 80 | 50 | 50 | 50 | 7 | 45.5 | 260 | 44.5 | 9 | 72 |
| 630A/4 | 3 | 550 | 425 | 300 | 150 | 348 | 268 | 315 | 85 | 85 | 250 | 100 | 76 | 250 | 38.5 | 162 | 80 | 50 | 50 | 50 | 7 | 34.5 | 260 | 445 | 9 | 72 |
Praeter Type
| Type | Magnitudinem Fuse | Frame Location and Installation Size | ||||||||||||||||
| GLR-63～400A |
|
A | B | C | E | F | H | H1 | I | J | K | L | M | P | R | T | φX | Y |
| 63A/3 | 0～00C | 133 | 118 | 134 | 126.5 |
|
116.5 |
|
159 | 145 | 106 | 5.4 | 36 | 32 |
|
|
|
|
| 63A/4 | 0～00C | 164 | 118 | 117 | 126.5 |
|
116.5 |
|
159 | 145 | 106 | 5.4 | 36 | 32 |
|
|
|
|
| 160A/3 | 0～00 | 150 | 162 | 173 | 126.5 | 44 | 108 | 53 | 141 | 189 | 127 | 5.4 | 38 | 36 | 20 | 2.5 | 8.5 | 19.5 |
| 160A/4 | 0～00 | 186 | 162 | 173 | 126.5 | 44 | 144 | 53 | 141 | 189 | 127 | 5.4 | 38 | 36 | 20 | 2.5 | 8.5 | 19.5 |
| 250/3 | 1 | 253 | 195 | 173 | 146 | 65 | 180 | 75 | 185 | 251 | 162 | 6.4 | 81 | 60 | 32 | 2.5 | 11 | 19.5 |
| 250/4 | 1 | 313 | 195 | 173 | 146 | 65 | 240 | 75 | 185 | 251 | 162 | 6.4 | 81 | 60 | 32 | 2.5 | 11 | 19.5 |
| 400/3 | 2 | 271 | 205 | 173 | 149 | 65 | 192 | 75 | 200 | 260 | 172 | 6.4 | 86 | 66 | 50 | 3 | 11 | 20 |
| 400/4 | 2 | 337 | 205 | 173 | 149 | 65 | 250 | 75 | 200 | 260 | 172 | 6.4 | 86 | 66 | 50 | 3 | 11 | 20 |
| Type | Magnitudinem Fuse | Frame Location and Installation Size | |||||||||||||||||||||||
| GLR-400～630A |
|
A | A1 | B | B1 | E | H | H1 | H2 | J | J2 | J1 | K | M | N | P | R | S | S1 | T | V | U | W | φL | Y |
| 400A/3 | 2 | 500 | 285 | 238 | 115 | 221 | 190 | 70 | 79 | 210 | 70 | 65 | 180 | 32.5 | 119 | 65 | 32 | 30 | 43 | 5 | 40.5 | 208 | 39.5 | 7 | 69 |
| 400A/4 | 2 | 560 | 345 | 238 | 115 | 221 | 255 | 70 | 79 | 210 | 70 | 65 | 180 | 32.5 | 119 | 65 | 32 | 30 | 43 | 5 | 24.5 | 208 | 39.5 | 7 | 69 |
| 630A/3 | 3 | 550 | 345 | 300 | 150 | 268 | 235 | 100 | 85 | 250 | 100 | 76 | 250 | 38.5 | 119 | 80 | 50 | 50 | 50 | 7 | 45.5 | 260 | 44.5 | 9 | 72 |
| 630A/4 | 3 | 630 | 425 | 300 | 150 | 268 | 315 | 100 | 85 | 250 | 100 | 76 | 250 | 38.5 | 119 | 80 | 50 | 50 | 50 | 7 | 34.5 | 260 | 445 | 9 | 72 |
1. Antequam in normalem servitium ponatur, 480 volt 3 phase 400 amp disiunctio fusae in situ verticali collocari oportet et laminam tegumenti removeri oportet.
2. Ad proprium brevem ambitum solvendi facultatem ac limitandi modum agendi, 480 volt 3 400 amp disiunctio disiunctio aptari debet cum fusibus rectae ratings.
3. Cum fuse nexum reponat, ambitus oneris primum disiungi debet et disiunctio switch operculum aperitur vel removetur. Fuse igitur emissi possunt sensim premendo sub lamina retenta verna tonde. Fuse nova instituitur ea labens per foramen in locum ductor.
4. Etsi arcus cubiculi facile e nervum scapulis inseri potest, remotio supervacanea vitanda est. Durante institutione, diligenter tractabitur et lente inseratur, donec plene sedeat.
5. Ad contactus 480 volt 3 Phase 400 amp fusae disiunctio conservandae switch in bono statu, inspectione regularis et purgatio pulveris, olei, vel aliorum depositorum exigitur. Praeterea lubricatio periodice applicanda est ad partes moventes mechanismum operantem ad operandum lenis servandum et ad servitium vitae extendere.
