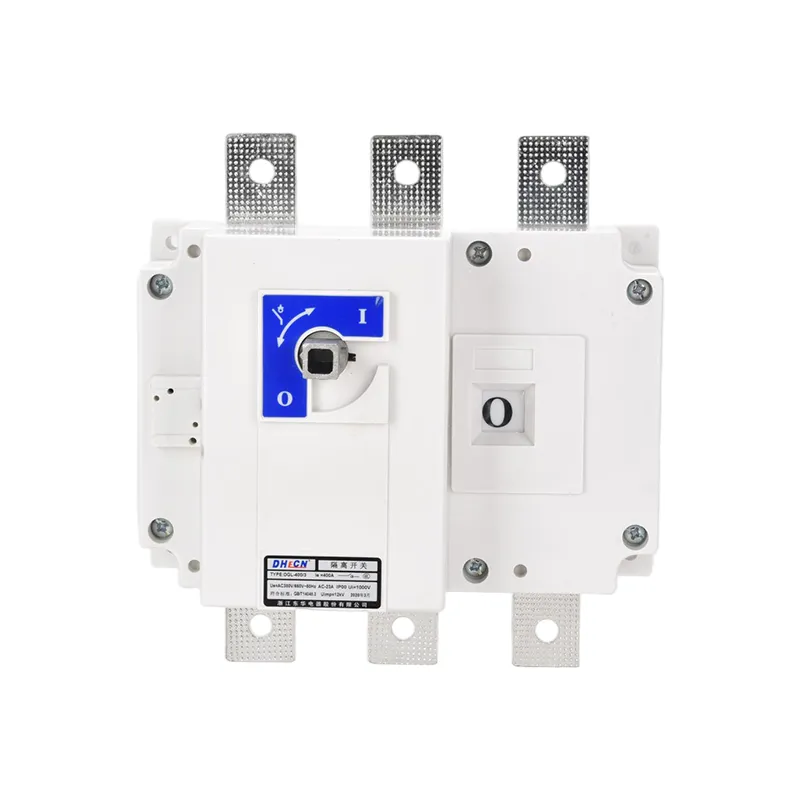

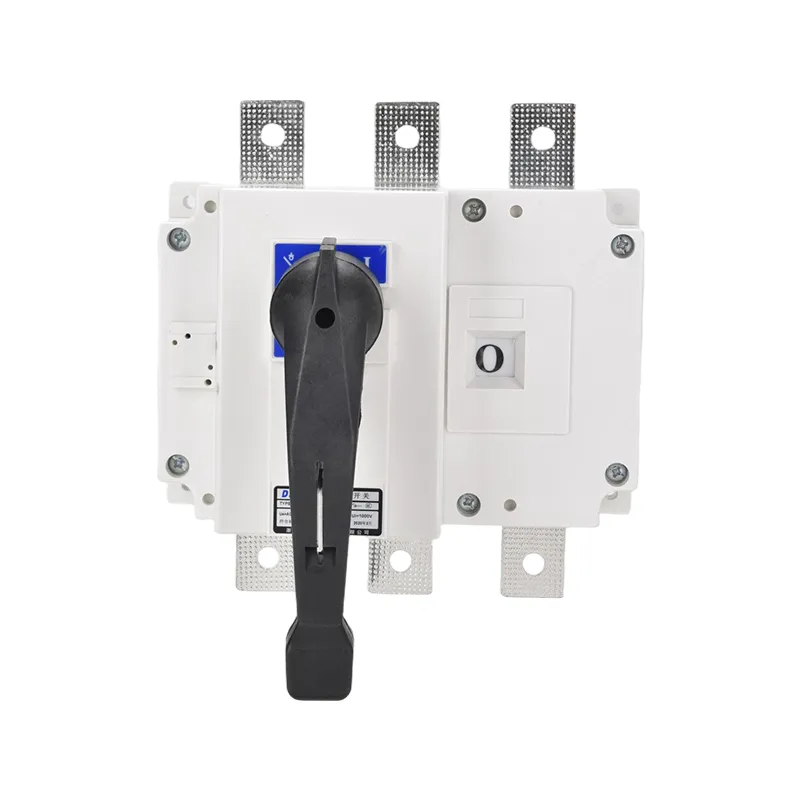

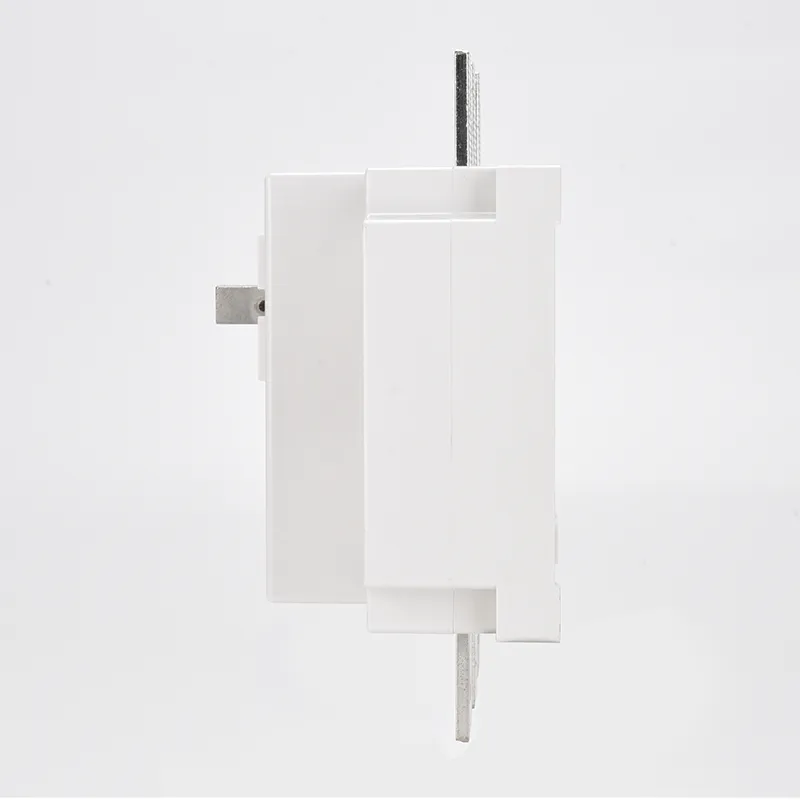

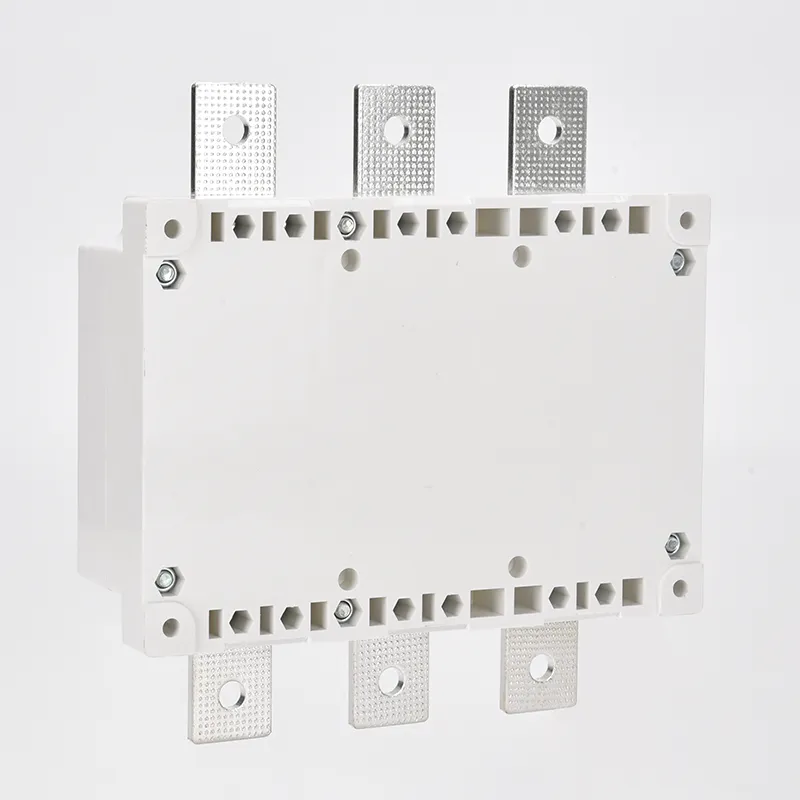

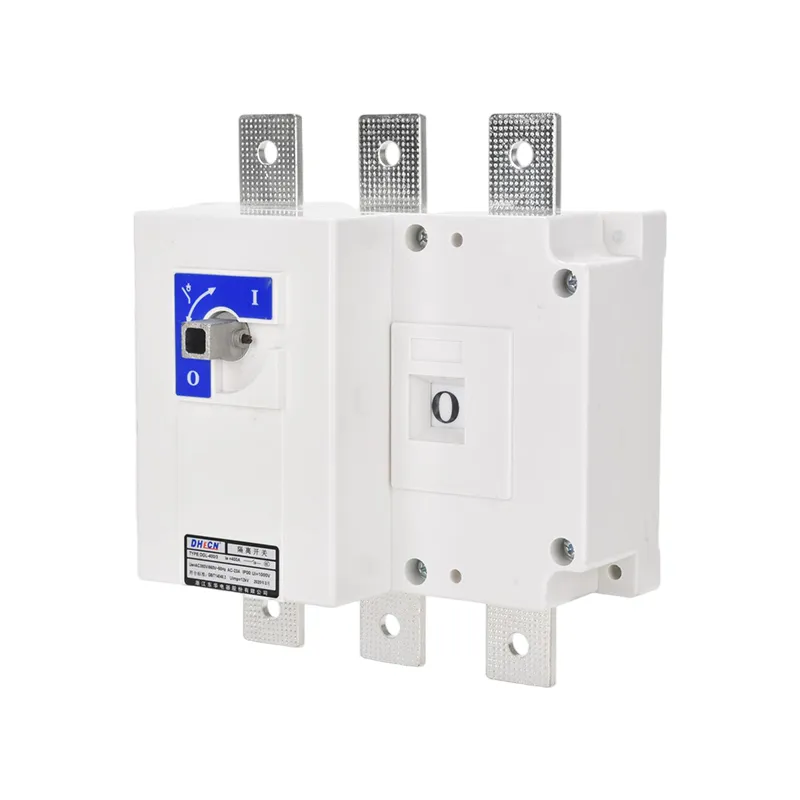

III Phase CC Amp Non Fused Disconnect Switch

Ut professio fabricandi, Wenzhou XiFa Electric Power Equipment Co., Ltd stricte sequitur qualitatem temperandi ratio ad singulas 3 Phase 200 amp non fusas disconnect switch. In officina 3 periodi 200 amp non mixtis disiunctio transibit, curatores inspicient singulas processus producentes leves operati ut ieiunium et nullam moram reddant. Cum transibit disiunctio perfecto, seriem officinam subire necesse est ut operandi mechanicas experiendi leves et certas actionis commutationes et potentiam frequentiam testium in ambitu et partibus insulationis principalibus sustineat.

Mitte Inquisitionem

depictio producti

Ut melius cognoscamus 3 tempus 200 amp non fusis disiunctis transitum, potuimus introducere transitum disiunctivum non fusum a functione in systematis potentiae. Ostendi posset ut infra;

1. Potestas Isolatio: Per inspectionem vel sustentationem instrumenti electrici aperiens 3 phase 200 amp non fusis disiunctio transibit omnino separat instrumentum sub servitio e partibus viventibus, creando confractum visibiles et curatores procurandi salutem.

2.Switching Operations: In vi systematis operandi, III Phase CC amp non fusis disiunctis virgas in coordinatione operant cum ruptoribus ambitus ad mutandum conformationem gyrorum operantem - exempli gratia, busbarum transferendis vel permutandis viae praebendis: ut ratio flexibilis coerceatur.

3. Faciens et Fractio Small Excursiunculas: 3 Phase 200 amp non fusae virgas disconnect non directe coniungere vel disiungi parvas circulos currentes, ut expositae lineae breves, voltage transformatorum, et comprehensores fluctuum, sine necessitate operandi circumiens ruptor, inde operationes exercitationis simpliciores.

4.Coordinatio cum Praesidio machinis: Cum culpa incidit, 3 phase 200 amp non fusis disiunctis transitum separat sectionem culpatam postquam ruptor ambitus retentus est, praeveniens culpam dilatationem et operationem systematis stabilis sustinens.

3 Phase 200 Amp Non Fused Disconnect Switch

Parameter productum:

lth (A)	125A	160A	200A	250A	315A	400A	500A	630A	1000A	1250A	1600A	2000A	2500A	3150A	4000A
Ui(V)	750	750	750	750	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
Dielectrica robur (V)	5000	5000	5000	5000	8000	8000	8000	8000	10000	10000	10000	10000	10000	10000	10000
Uimp (KV)	8	8	8	8	12	12	12	12	12	12	12	12	12	12	12
Current le opus (A)
400V AC21B	125	160	200	250	315	400	500	630	1000	1250	1600	2000	2500	3150	4000
400V AC22B	125	160	200	250	315	400	500	630	1000	1250	1600	2000	2500	2500	2500
400V AC23B	125	160	200	250	315	340	425	500	800	1000	1250	1250	1250	1250	1250
750V AC21B	125	160	160	200	315	400	400	500	1000	1000	1600	2000	2500	3150	4000
750V AC22B	125	160	160	160	315	315	315	315	800	800	800	2000	2000	2000	2000
750V AC23B	80	80	100	125	125	125	125	125	400	400	500	1000	1000	1000	1000
220V DC21	125	160	200	250	315	400	500	630
220V DC22	125	160	200	250	315	400	400	500
220V DC23	125	125	160	200
440V DC21	100	125	160	200	315	400	400	500
440V DC22	100	125	160	200	315	400	400	500
440V DC23	100	125	160	200
Motor Power(KW)
400V	63	80	100	132	160	220	280	315	560	560	560	710	710	710	710
750V	75	75	90	110	185	185	185	185	475	475	475	750	750	750	750
lcw (KA Rms,0.1S/1.0S)	20/10	20/10	30/12	30/12	45/20	45/20	50/25	50/25	90/50	90/50	90/50	90/50	90/50	90/50	90/50
Facere et frangere Capacity
lcn(A Rms) AC23B 400V	1250	1250	2000	2000	3150	4000	4000	4000	10000	10000	10000	10000	10000	10000	10000
lcm(A Rms) AC23B 400V	1000	1000	1600	1600	2500	3200	3200	3200	8000	8000	8000	8000	8000	8000	8000
lcm (KA Pecco Value)	12	12	17	17	30	30	40	40	70	70	70	70	70	70	70
Mechanica Vita (tempora)	10000	10000	10000	10000	5500	5500	5500	5500	4000	4000	3000	2500	2500	2500	2500
Electrical Vita (tempora)
Ue=660V Rated Current le
COS∮＝0.95 AC21B	1500	1500	1500	1500	750	750	750	750	600	600	450	400	400	350	350
COS∮＝0.65 AC22B	1000	1000	1000	1000	500	500	500	500	400	400	300	200	200	200	200
COS∮＝0.35 AC23B	500	500	500	500	250	250	250	250	200	200	150	100	100	100	100
Pondus (kg)
3 polos	1	1	2	2	3.5	3.5	4	4	10.5	10.5	16	31	31	42	90
4 polos	1.5	1.5	2.5	2.5	4	4	4.5	4.5	13	13	20	40	40	49	102
Torque operating (Nm)	6.5	6.5	10	10	14.5	14.5	14.5	14.5	27	27	27	60	60	60	110

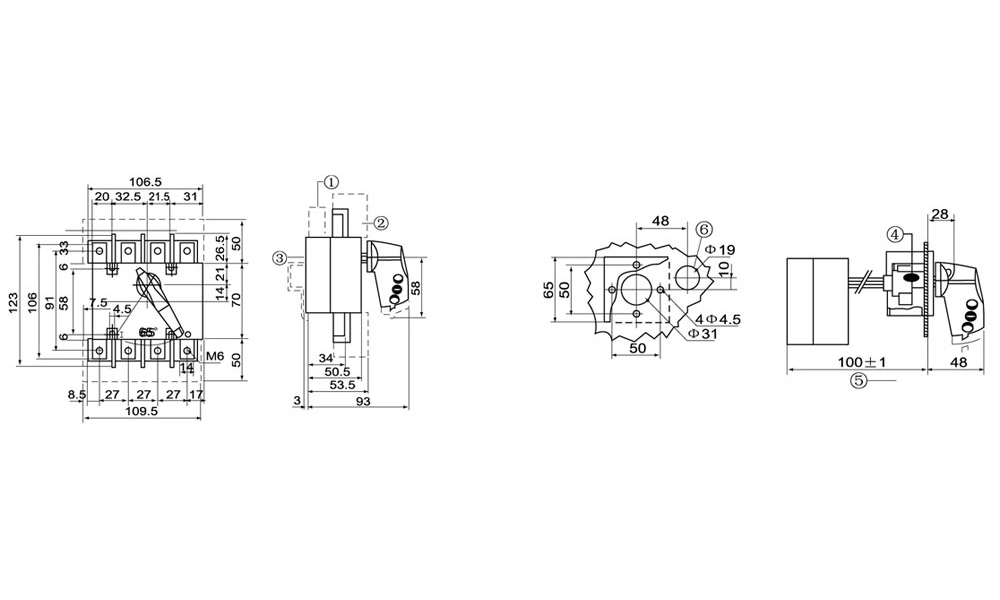

3 Phase 200 Amp Non Fused Disconnect Switch

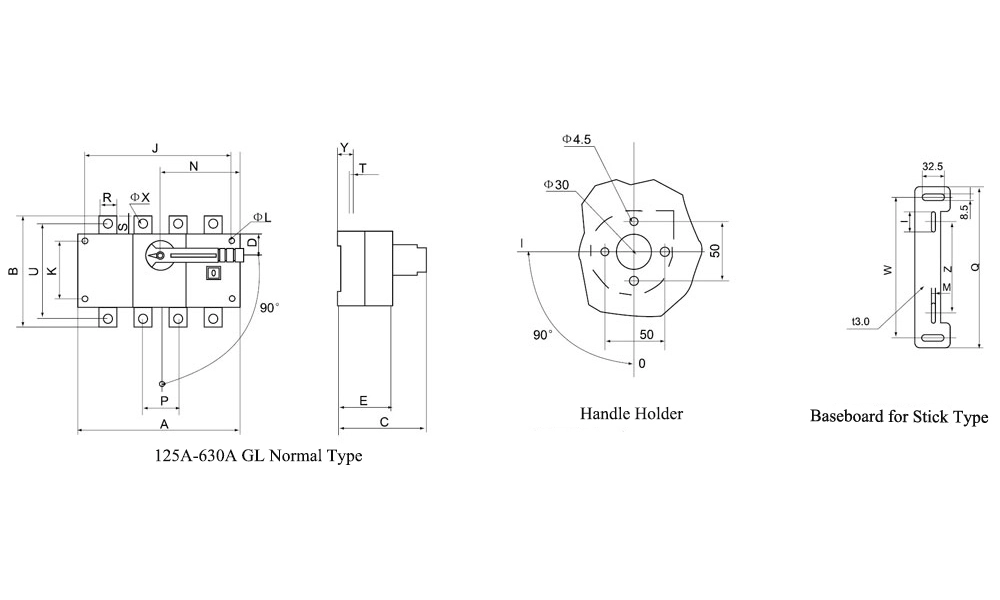

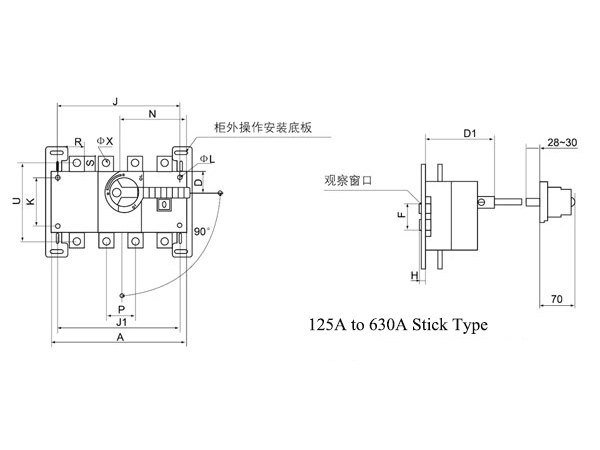

Type	Frame Location and Installation Size
GL-125～630A	A	B	C	D	D1	E	φL	J	J1	K	N	P	R	S	T	U	φX	Y	F	H
125A-160A/3	140	135	125	27	92	73	6	120	120	65	85	36	20	25	4	115	9	25	59	10
125A-160A/4	170	135	125	27	92	73	6	150	150	65	85	36	20	25	4	115	9	25	59	10
200A-250A/3	180	170	138	35	98	86	6	160	160	90	115	50	25	30	4	140	11	25	76	15
200A-250A/4	230	170	138	35	98	86	6	210	210	90	115	50	25	30	4	140	11	25	76	15
315A-400A/3	230	240	165	50	135	110	7	210	210	140	145	65	32	40	5	206	11	37	94	20
315A-400A/4	290	240	165	50	135	110	7	275	275	140	145	65	32	40	5	206	11	37	94	20
500A-630A/3	230	260	165	50	135	110	7	210	210	140	145	65	40	50	6	220	13	37	94	20
500A-630A/4	290	260	165	50	135	110	7	275	275	140	145	65	40	50	6	220	13	37	94	20

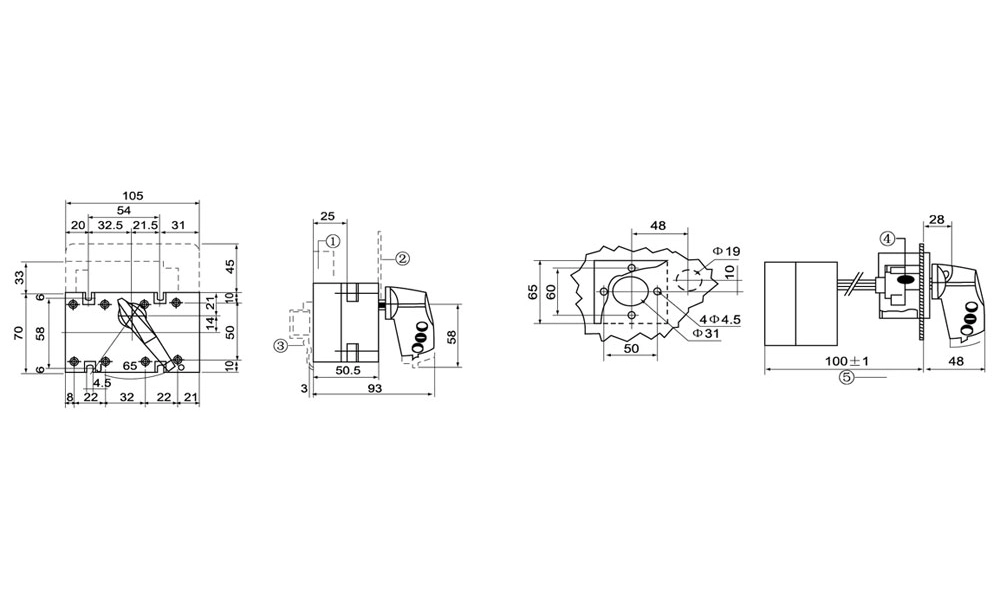

Type	Magnitudo
GL-125～630A	I	M	Z	W	Q
125A	55	5.5	85	190	218
160A	55	5.5	85	190	218
200A	55	5.5	85	190	218
250A	55	5.5	85	190	218
315A	60	6.5	130	240	270
400A	60	6.5	130	240	270
500A	60	6.5	130	240	270
630A	60	6.5	130	240	270

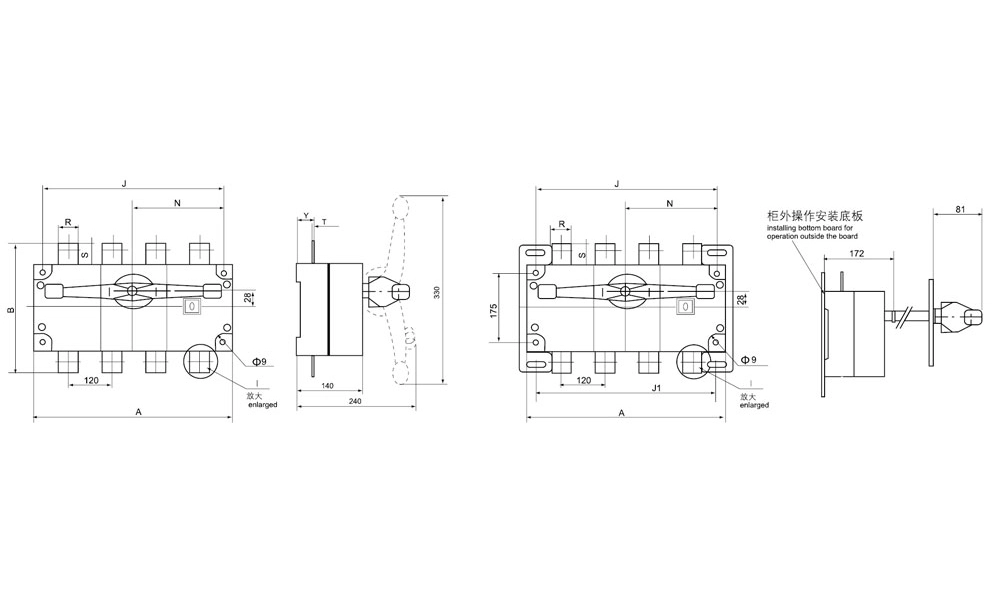

Type	Frame Location and Installation Size
GL-1000～4000A	A	B	J	J1	N	R	S	T	Y
1000-1250A/3	378	312	355	355	186	60	56	8	48
1000-1250A/4	492	312	470	470	248	60	56	8	48
1600A/3	378	338	355	355	186	80	69	8	49
1600A/4	492	338	470	470	248	80	69	10	49
2000-500A/3	378	455	355	355	186	80	127	10	78.5
2000-500A/4	492	455	470	470	248	80	127	10	78.5
3150-4000A/3	378	514	355	355	186	120	157	12	78.5
3150-4000A/4	492	514	470	470	248	120	157	12	78.5

Product FAQ:

Q: Quae est prima functio 3 periodi 200A non fusi transitum disconnect?

A: a 3 phase 200A switch disconnect non fusis medium praebet vim manualem ab instrumento vel circuitu ad conservationem et salutem. Dissimile transitum fusum, tutelam supercurrentem non includit - simpliciter aperit et claudit.

Q: In quo genere applicationum est 3 tempus 200A non fusum disconnect switch typice adhibitam?

A: Disconnects non-disiunctis plerumque inauguratus est, cum praesidio supercurrente iam provisum est ab adverso flumine praevaricatore vel fuse. Saepe adhibentur ut locales cogitationes solitariae pro HVAC unitates, motores, instrumenta machinae vel tabulas distribuentes.

Q: Cur eligere CC amp rating?

A: A 200A rating aptum est ad systemata ubi maximum continuum onus currente 200 amps non excedit. Haec aestimatione saepe adhibetur in media magnitudine commerciali ac levi industriae facilitatum qua rami circumitus vel onera singula quaerunt tutam solitudinem.

Q: Quae voltage ratings praesto sunt pro 3 Phase 200A non fusae switch disconnect?

A: Pleraque 3 pascha 200A disiunctio non mixta aestimantur usque ad 600 volts AC, cum 240V et 480V communissima. Semper cognoscere est machinam rating compositus vel systema intentione excedit.
