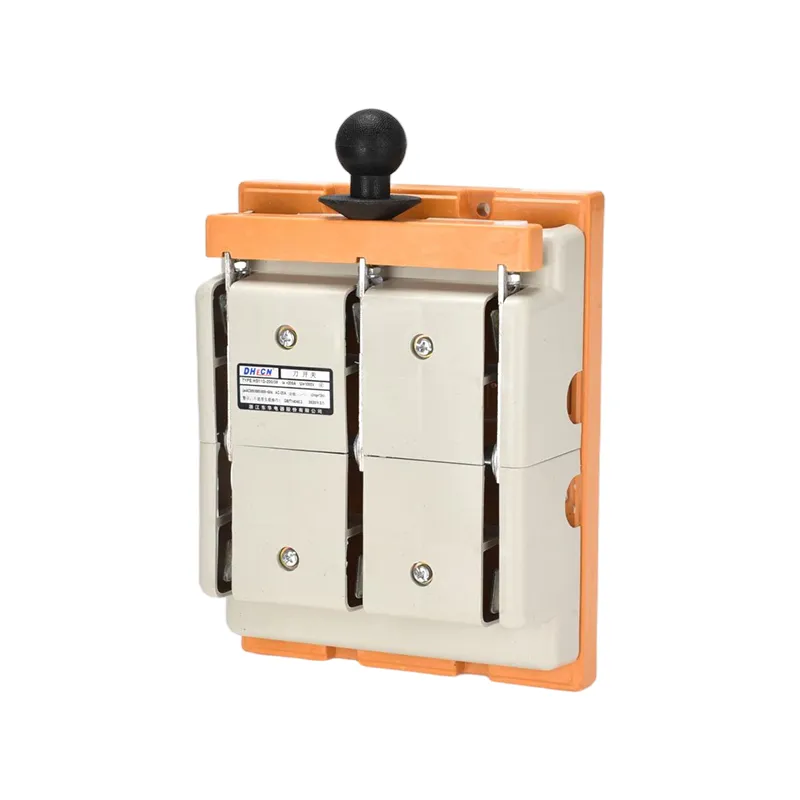

480v 400 amp 3 phase disiunctio transibit tres phase AC 400 amp currentes aestimatae portabunt in situ claudendi. Simplex et compacta consilium habet de structura quae late applicata in substationibus compactis et tabulis electricis. Praecipuum notae 480v 400 amp 3 phase disconnect switch non est arcus exstinguere facultatem nec operationem onus.
480v 400 amp 3 phase disiunctio switch praebet disiunctio visibilis et certa disiunctio ad tutelam operantis per sustentationem praestandam. Munus 480v 400 amp 3 phase disconnect switch est currentem disconnect in ambitu nullius sarcinarum. Hoc est, nempe 480v 400 amp 3 Phase disiunctio transibit ante praevaricatorem ambitum occlusum erit, et post praevaricatorem in potentia systematis distributionis supplantabitur.
| lth (A) | 125A | 160A | 200A | 250A | 315A | 400A | 500A | 630A | 1000A | 1250A | 1600A | 2000A | 2500A | 3150A | 4000A |
| Ui(V) | 750 | 750 | 750 | 750 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Dielectrica robur (V) | 5000 | 5000 | 5000 | 5000 | 8000 | 8000 | 8000 | 8000 | 10000 | 10000 | 10000 | 10000 | 10000 | 10000 | 10000 |
| Uimp (KV) | 8 | 8 | 8 | 8 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Current le opus (A) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 400V AC21B | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 |
| 400V AC22B | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 1000 | 1250 | 1600 | 2000 | 2500 | 2500 | 2500 |
| 400V AC23B | 125 | 160 | 200 | 250 | 315 | 340 | 425 | 500 | 800 | 1000 | 1250 | 1250 | 1250 | 1250 | 1250 |
| 750V AC21B | 125 | 160 | 160 | 200 | 315 | 400 | 400 | 500 | 1000 | 1000 | 1600 | 2000 | 2500 | 3150 | 4000 |
| 750V AC22B | 125 | 160 | 160 | 160 | 315 | 315 | 315 | 315 | 800 | 800 | 800 | 2000 | 2000 | 2000 | 2000 |
| 750V AC23B | 80 | 80 | 100 | 125 | 125 | 125 | 125 | 125 | 400 | 400 | 500 | 1000 | 1000 | 1000 | 1000 |
| 220V DC21 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 |
|
|
|
|
|
|
|
| 220V DC22 | 125 | 160 | 200 | 250 | 315 | 400 | 400 | 500 |
|
|
|
|
|
|
|
| 220V DC23 | 125 | 125 | 160 | 200 |
|
|
|
|
|
|
|
|
|
|
|
| 440V DC21 | 100 | 125 | 160 | 200 | 315 | 400 | 400 | 500 |
|
|
|
|
|
|
|
| 440V DC22 | 100 | 125 | 160 | 200 | 315 | 400 | 400 | 500 |
|
|
|
|
|
|
|
| 440V DC23 | 100 | 125 | 160 | 200 |
|
|
|
|
|
|
|
|
|
|
|
| Motor Power(KW) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 400V | 63 | 80 | 100 | 132 | 160 | 220 | 280 | 315 | 560 | 560 | 560 | 710 | 710 | 710 | 710 |
| 750V | 75 | 75 | 90 | 110 | 185 | 185 | 185 | 185 | 475 | 475 | 475 | 750 | 750 | 750 | 750 |
| lcw (KA Rms,0.1S/1.0S) | 20/10 | 20/10 | 30/12 | 30/12 | 45/20 | 45/20 | 50/25 | 50/25 | 90/50 | 90/50 | 90/50 | 90/50 | 90/50 | 90/50 | 90/50 |
| Facere et frangere Capacity |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| lcn(A Rms) AC23B 400V | 1250 | 1250 | 2000 | 2000 | 3150 | 4000 | 4000 | 4000 | 10000 | 10000 | 10000 | 10000 | 10000 | 10000 | 10000 |
| lcm(A Rms) AC23B 400V | 1000 | 1000 | 1600 | 1600 | 2500 | 3200 | 3200 | 3200 | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 |
| lcm (KA Pecco Value) | 12 | 12 | 17 | 17 | 30 | 30 | 40 | 40 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| Mechanica Vita (tempora) | 10000 | 10000 | 10000 | 10000 | 5500 | 5500 | 5500 | 5500 | 4000 | 4000 | 3000 | 2500 | 2500 | 2500 | 2500 |
| Electrical Vita (tempora) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Ue=660V Ratum Current le |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| COS∮＝0.95 AC21B | 1500 | 1500 | 1500 | 1500 | 750 | 750 | 750 | 750 | 600 | 600 | 450 | 400 | 400 | 350 | 350 |
| COS∮＝0.65 AC22B | 1000 | 1000 | 1000 | 1000 | 500 | 500 | 500 | 500 | 400 | 400 | 300 | 200 | 200 | 200 | 200 |
| COS∮＝0.35 AC23B | 500 | 500 | 500 | 500 | 250 | 250 | 250 | 250 | 200 | 200 | 150 | 100 | 100 | 100 | 100 |
| Pondus (kg) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 3 polos | 1 | 1 | 2 | 2 | 3.5 | 3.5 | 4 | 4 | 10.5 | 10.5 | 16 | 31 | 31 | 42 | 90 |
| 4 polos | 1.5 | 1.5 | 2.5 | 2.5 | 4 | 4 | 4.5 | 4.5 | 13 | 13 | 20 | 40 | 40 | 49 | 102 |
| Torque operating (Nm) | 6.5 | 6.5 | 10 | 10 | 14.5 | 14.5 | 14.5 | 14.5 | 27 | 27 | 27 | 60 | 60 | 60 | 110 |

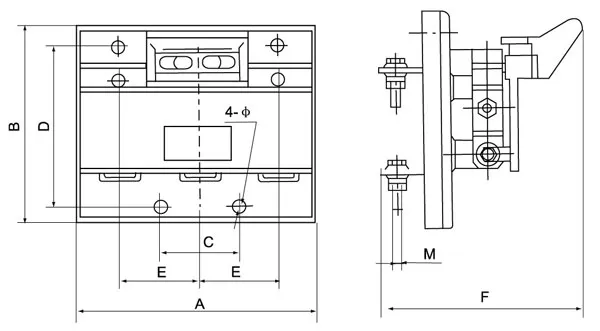

Ante Wring Type
| Ratum Current（A） | Artus Size（mm) | Intalatio Size（mm) | ||||||
| A | B | E | F | M | C | D | φ | |
| 200 | 190 | 170 | 70 | 155 | M8 | 70 | 140 | φ7 |
| 400 | 220 | 220 | 80 | 170 | M12 | 80 | 190 | φ7 |
| 630 | 270 | 300 | 100 | 170 | M16 | 100 | 140 | φ9 |
| 1000 | 320 | 320 | 120 | 195 | 2-M12 | 120 | 140 | φ10 |
| 1600 | 360 | 360 | 130 | 215 | 4-M12 | 130 | 140 | φ11 |

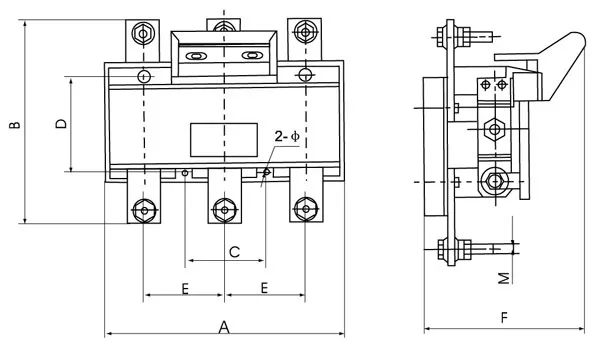

Rare Wring Type
| Ratum Current（A） | Artus Size（mm) | Intalatio Size（mm) | ||||||
| A | B | E | F | M | C | D | φ | |
| 200 | 190 | 170 | 70 | 205 | M8 | 70 | 160 | φ7 |
| 400 | 220 | 220 | 80 | 220 | M12 | 80 | 190 | φ7 |
| 630 | 270 | 300 | 100 | 220 | M16 | 100 | 220 | φ9 |
| 1000 | 340 | 310 | 120 | 300 | 2-M12 | 120 | 260 | φ10 |
| 1600 | 380 | 340 | 130 | 300 | 4-M12 | 130 | 300 | φ11 |
Q: Quid est principale propositum de 480v 400 amp 3 phase disconnect switch?
A: A 480v 400 amp 3 phase disconnect switch praebet viam tutam secludere potestatem antequam instrumenta electrica serviant. In 480 voltis et 400 amps, hoc genus mutandi typice adhibetur in applicationibus commercialibus et industrialibus ad potentiam motorum, HVAC systemata, machinamenta vel tabulas distribuendas.
Q: Quomodo scio an 400 amps sit ius rating applicationis meae?
A: Commutare debes switch fundatur in maxima current systema tuum requirit. A 400A switch est conveniens cum onere connexo vel tabella ordinatur ad excursus tractandos usque ad 400 amps. Semper reprehendo tam continuum operandi venam quam brevem-circuitus aestimationem requisita antequam eligens.
Q: Quid interest inter permutationes fusibiles et non-fusibiles disiunctio?
A: Fusible: Includes fuses for overcurrent protection. Hoc et medium disiunctivum et in circuitu praesidium praebet.
Non-fusible: Sola potentia segregat sed tutelam non praebet. Elige fluxa, si opus est -in praesidio; non-fusible si praesidio iam tractatur ab adverso flumine praevaricatores.
